Product Summary

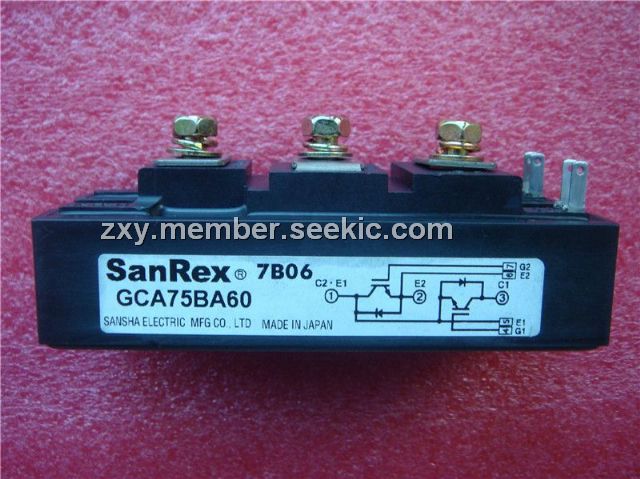

The GCA75BA60 is an IGBT MODULE. It is designed for high speed, high current switching applications. The GCA75BA60 is electrically isolated and contains two IGBTs connected in series with a fast switching, soft recovery diode (trr=0.1μs) reverse connected across each IGBT. The applications of the GCA75BA60 include Inverter for motor control (VVVF), UPS, AC servo, DC power supply, Welder.
Parametrics
GCA75BA60 absolute maximum ratings: (1)VCES Collector-Emitter Voltage with gate terminal shorted to emitter: 600V; (2)VGES Gate-Emitter Voltage with collector shorted to emitter: ±20V; (3)Ic Collector Current DC: 75A; (4)Ic Collector Current Pulse (1ms): 150A; (5)Ic Reverse Collector Current: 75A; (6)Pc Total Power Dissipation Tc＝25℃: 315W; (7)Tj Junction Temperature: 150℃; (8)Tstg Storage Temperature:－40℃ to +125℃; (9)VISO Isolation Voltage (R.M.S.) A.C.1minute: 2500V; (10) Mass: 210g.
Features
GCA75BA60 features: (1)IC＝75A VCES＝600V; (2)VCE〔sat〕＝2.4V Typ; (3)tf＝0.10μs Typ; (4) Soft recovery diode.
Diagrams
 |
