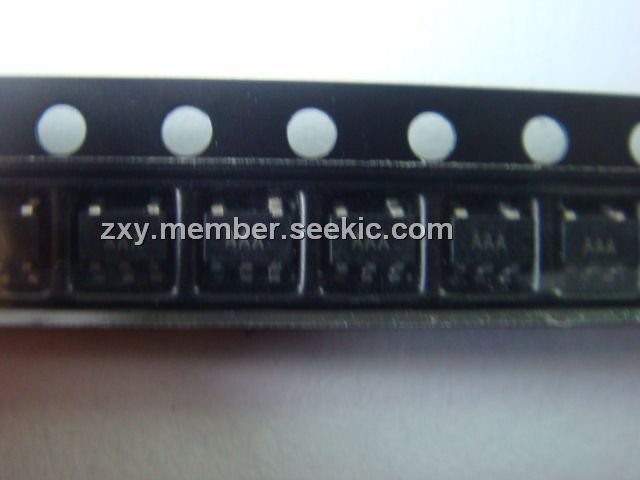

AD8601ARTZ-REEL7

Precision CMOS, Input/Output Wideband Operational Amplifier, SOT23-5, 2.7V to 6V Single Supply

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.40~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.40~1.00

PartNumber:: AD8601ARTZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOT | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:AD8601ARTZ-REEL7
US $0.40 - 1.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8601ARTZ-REEL7 is a single and dual rail-to-rail input and output single supply amplifier featuring very low offset voltage and wide signal bandwidth. The amplifier uses a new, patented trimming technique that achieves superior performance without laser trimming. It is fully specified to operate from 3 V to 5 V single supply. The combination of low offsets, very low input bias currents, and high speed make the AD8601ARTZ-REEL7 useful in a wide variety of applications. Filters, integrators, diode amplifiers, shunt current sensors, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. For the most cost-sensitive applications the D grades offer this ac performance with lower dc precision at a lower price point.

Parametrics

AD8601ARTZ-REEL7 absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage: ±6 V; (4)Storage Temperature Range; (5)R, RM, RT Packages: –65℃ to +150℃; (6)Operating Temperature Range: –40℃ to +125℃; (7)Junction Temperature Range, R, RM, RT Packages: –65℃ to +150℃; (8)Lead Temperature Range (Soldering, 60 sec): 300℃; (9)ESD: 2 kV HBM.

Features

AD8601ARTZ-REEL7 features: (1)Low Offset Voltage: 500 μV Max; (2)Single Supply Operation: 2.7 V to 6 V; (3)Low Supply Current: 750 μA/Amplifier; (4)Wide Bandwidth: 8 MHz; (5)Slew Rate: 5 V/μs; (6)Low Distortion; (7)No Phase Reversal; (8)Low Input Currents; (9)Unity Gain Stable.
