HCPL7800

High CMR Isolation Amplifier, DIP, 85 kHz Bandwidth, 0.9mV Input Offset Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.05~1.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.05~1.05

PartNumber:: HCPL7800

Brand:: Agilent Technologies - Agilent | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-28

From Other Seller

Part Number:HCPL7800
US $1.05 - 1.05
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

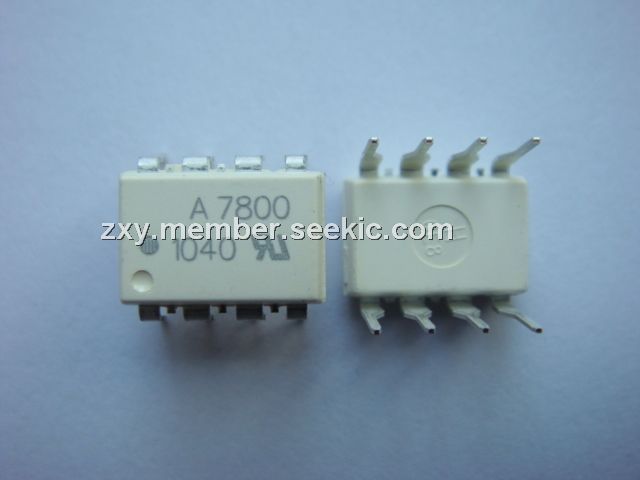

The HCPL7800 high CMR isolation amplifier provides a unique combination of features ideally suited for motor control circuit designers. The product provides the precision and stability needed to accurately monitor motor current in highnoise motor control environments, providing for smoother control (less torque ripple) in various types of motor control applications. This product paves the way for a smaller, lighter, easier to produce, high noise rejection, low cost solution to motor current sensing. The product can also be used for general analog signal isolation applications requiring high accuracy, stability and linearity under similarly severe noise conditions. For general applications, we recommend the HCPL7800 which exhibits a part-to-part gain tolerance of ± 5%. For precision applications, HP offers the HCPL7800A and HCPL7800B, each with part to part gain tolerances of ± 1%.

Parametrics

HCPL7800 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Ambient Operating Temperature TA: - 40 to 100 ℃; (3)Supply Voltages VDD1, VDD2: 0.0 to 5.5 V; (4)Steady-State Input Voltage VIN+, VIN-: -2.0 to VDD1 +0.5 V; (5)Two Second Transient Input Voltage: -6.0; (6)Output Voltages VOUT+, VOUT-: -0.5 to VDD2 +0.5 V; (7)Lead Solder Temperature TLS: 260 ℃.

Features

HCPL7800 features: (1)15 kV/μs Common-Mode; (2)Rejection at VCM = 1000 V; (3)Compact, Auto-Insertable; (4)Standard 8-pin DIP Package; (5)4.6 μV/℃ Offset Drift vs. Temperature; (6)0.9 mV Input Offset Voltage; (7)85 kHz Bandwidth; (8)0.1% Nonlinearity; (9)Worldwide Safety Approval: UL 1577 (3750 V rms/1 min), VDE 0884 and CSA; (10)Advanced Sigma-Delta (∑△) A/D Converter Technology; (11)Fully Differential Circuit Topology; (12)1 μm CMOS IC Technology.
