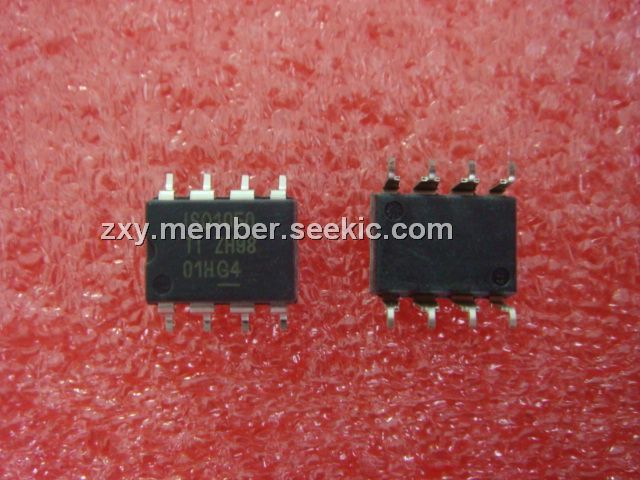

ISO1050DUBR

Product Summary

The ISO1050DUBR is a galvanically isolated CAN transceiver that meets or exceeds the specifications of the ISO 11898 standard. The device has the logic input and output buffers separated by a silicon oxide (SiO2) insulation barrier that provides galvanic isolation of up to 5000 VRMS for DW Package and 2500 VRMS for DUB package. Used in conjunction with isolated power supplies, the ISO1050DUBR prevents noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. As a CAN transceiver, the device provides differential transmit capability to the bus and differential receive capability to a CAN controller at signaling rates up to 1 megabit per second (Mbps). Designed for operation in especially harsh environments, the ISO1050DUBR features cross-wire, overvoltage and loss of ground protection from –27 V to 40 V and over-temperature shut-down, as well as –12 V to 12 V common-mode range. The ISO1050DUBR is characterized for operation over the ambient temperature range of –55℃ to 105℃.

Parametrics

ISO1050DUBR absolute maximum ratings: (1)VCC1, VCC2 Supply voltage: –0.5 V to 6 V; (2)VI Voltage input (TXD): –0.5 V to 6 V; (3)VCANH or VCANH Voltage range at any bus terminal (CANH, CANL): –27 V to 40 V; (4)IO Receiver output current: ±15 mA; (5)ESD Human Body Model JEDEC Standard 22, Method A114-C.01 Bus pins and GND2: ±4 kV; All pins ±4 kV; (6)Charged Device Model JEDEC Standard 22, Test Method C101, All pins: ±1.5 kV; (7)Machine Model ANSI/ESDS5.2-1996 All pins: ±200 V; (8)Tstg Storage temperature: –65℃ to 150℃; (9)TJ Junction temperature: –55℃ to 150℃.

Features

ISO1050DUBR features: (1)5000-VRMS Isolation (DW Package); (2)2500-V RMS Isolation (DUB Package); (3)Failsafe Outputs; (4)Low Loop Delay: 150 ns Typical; (5)50 kV/ms Typical Transient Immunity; (6)Meets or Exceeds ISO 11898 requirements; (7)Bus-Fault Protection of –27 V to 40 V; (8)Dominant Time-Out Function; (9)IEC 60747-5-2 (VDE 0884, Rev. 2) & IEC 61010-1 Approved; (10)UL 1577, IEC 60950-1 and CSA Approvals Pending; (11)3.3-V Inputs are 5-V Tolerant.

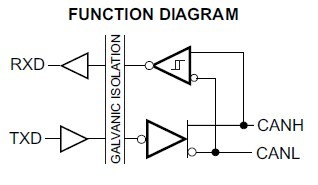

Diagrams
