Product Summary

The LM2902MX is a Low Power Quad Operational Amplifier. It consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power of LM2902MX supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.

Parametrics

LM2902MX absolute maximum ratings: (1)Supply Voltage, V+: 26V; (2)Differential Input Voltage: 26V; (3)Input Voltage: -0.3V to +26V; (4)Input Current (VIN < -0.3V): 50 mA; (5)Power Dissipation: Molded DIP: 1130 mW, Cavity DIP: 1260 mW; (6)Small Outline Package: 800 mW; (7)Output Short-Circuit to GND (One Amplifier) V+ ≤ 15V and TA = 25℃: Continuous; (8)Operating Temperature Range: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 seconds): 260℃.

Features

LM2902MX features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gain 100 dB; (3)Wide bandwidth (unity gain) 1 MHz (temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drain (700 μA)-essentially independent of supply voltage; (6)Low input biasing current 45 nA (temperature compensated); (7)Low input offset voltage 2 mV and offset current: 5 nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0V to V+ - 1.5V.

Diagrams

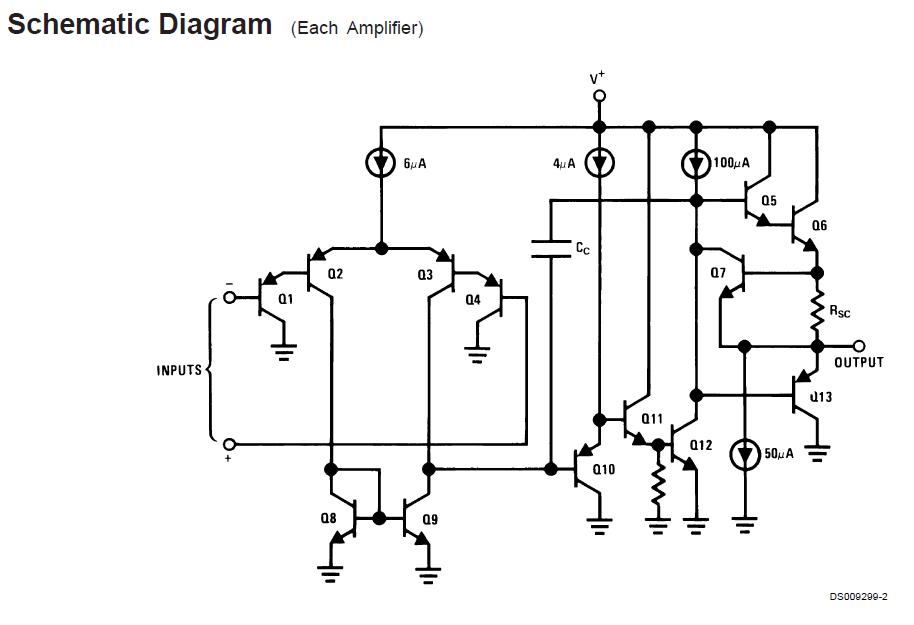

LM2902MX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

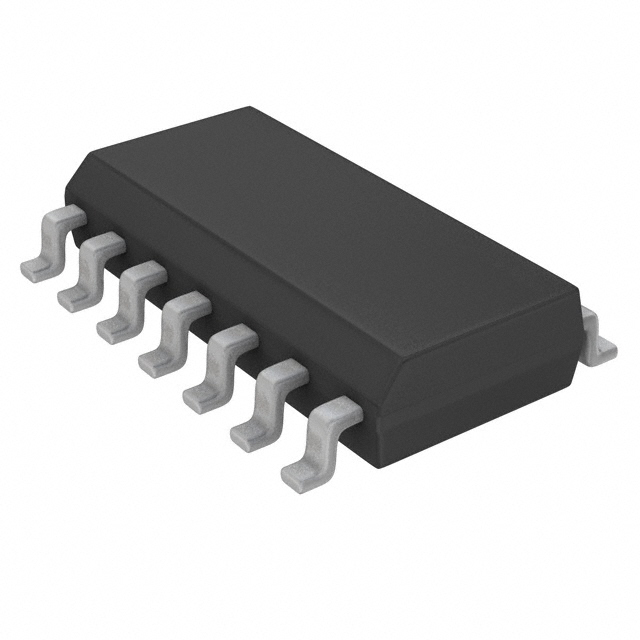

LM2902MX
LM2902MX

Fairchild Semiconductor

Operational Amplifiers - Op Amps SOP-14 Quad

Data Sheet

0-1: $0.34
1-25: $0.23
25-100: $0.18
100-250: $0.15
LM2902MX/NOPB
LM2902MX/NOPB

National Semiconductor (TI)

Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP

Data Sheet

0-1: $0.61
1-25: $0.48
25-100: $0.43
100-250: $0.37
