LM3670MF-1.8

LM3670MF-1.8, step-down DC-DC converter, -0.2 to 6V, 350mA, SOT, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.44~0.46 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.44~0.46

PartNumber:: LM3670MF-1.8

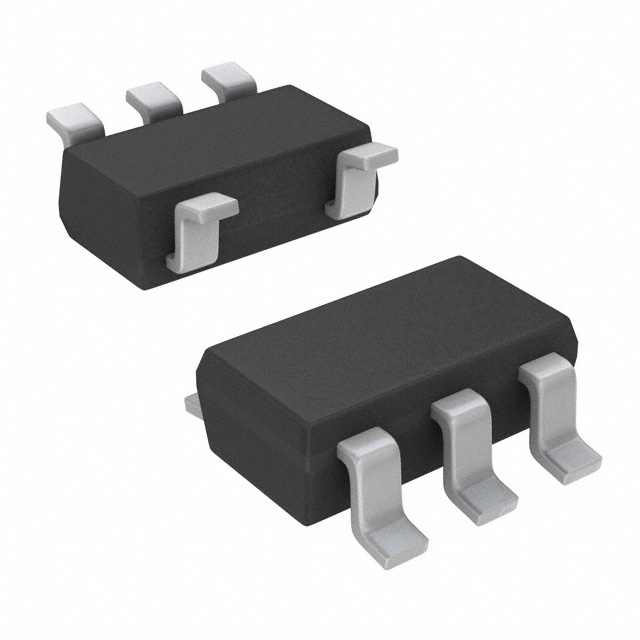

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM3670MF-1.8
US $0.44 - 0.46
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
IRF3205

US $0.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM3670MF-1.8 is a step-down DC-DC converter. It is optimized for powering ultra-low voltage circuits from a single Li-Ion cell or 3 cell NiMH/NiCd batteries. The LM3670MF-1.8 provides up to 350 mA load current, over an input voltage range from 2.5V to 5.5V. There are several different fixed voltage output options available as well as an adjustable output voltage version. The applications of the LM3670MF-1.8 include Mobile phones, Hand-Held Radios, Personal Digital Assistants, Palm-top PCs, Portable Instruments, Battery Powered Devices.

Parametrics

LM3670MF-1.8 absolute maximum ratings: (1)VIN Pin: Voltage to GND: -0.2V to 6.0V; (2)EN Pin: Voltage to GND: -0.2V to 6.0V; (3)FB, SW Pin: (GND-0.2V) to (VIN + 0.2V); (4)Junction Temperature (TJ-MAX): -45 to +125℃; (5)Storage Temperature Range: -45 to +150℃; (6)Maximum Lead Temperature (Soldering, 10 sec.): 260℃.

Features

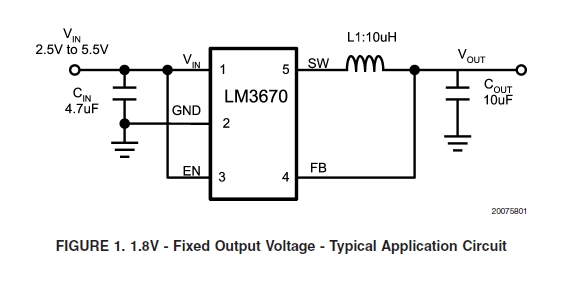

LM3670MF-1.8 features: (1)VOUT = adj (.7V min), 1.2, 1.5, 1.6, 1.8, 1.875, 2.5, 3.3V; (2)2.5V≤VIN≤5.5V; (3)15 μA typical quiescent current; (4)350 mA maximum load capability; (5)1 MHz PWM fixed switching frequency (typ.); (6)Automatic PFM/PWM mode switching; (7)Available in fixed output voltages as well as an adjustable version; (8)SOT23-5 package; (9)Low drop out operation - 100% duty cycle mode; (10)Internal synchronous rectification for high efficiency; (11)Internal soft start; (12)0.1 μA typical shutdown current; (13)Operates from a single Li-Ion cell or 3 cell NiMH/NiCd batteries; (14)Only three tiny surface-mount external components required (one inductor, two ceramic capacitors); (15)Current overload protection.
