Product Summary

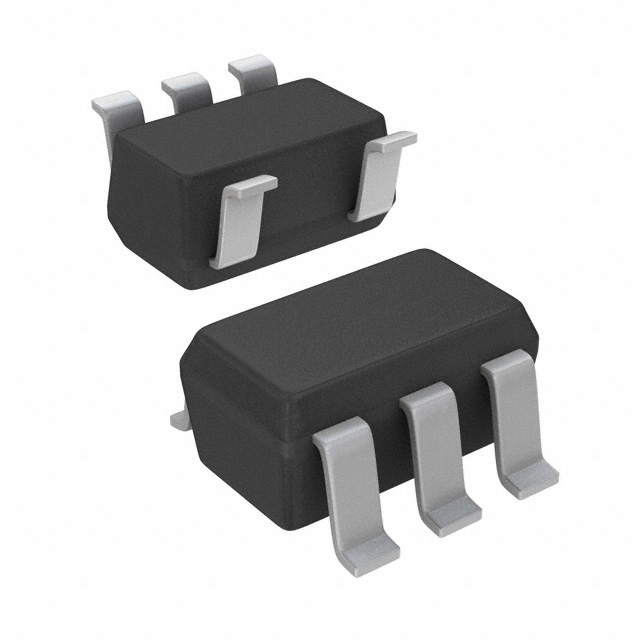

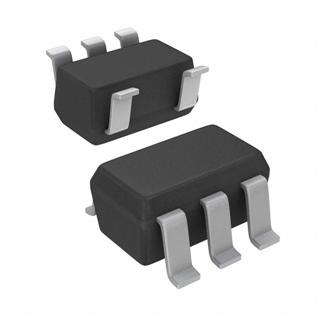

The LM4040CEM3-5.0 is a Precision Micropower Shunt Voltage Reference. Ideal for space critical applications, it is available in the sub-miniature SC70 and SOT-23 surface-mount package. The LM4040CEM3-5.0’s advanced design eliminates the need for an external stabilizing capacitor while ensuring stability with any capacitive load, thus making it easy to use. Further reducing design effort is the availability of the voltages of 5V. The LM4040CEM3-5.0 has a maximum operating current of 15 mA. It utilizes fuse and zener-zap reverse breakdown voltage trim during wafer sort to ensure that the prime parts have an accuracy of better than ±0.1% (A grade) at 25℃. Bandgap reference temperature drift curvature correction and low dynamic impedance ensure stable reverse breakdown voltage accuracy over a wide range of operating temperatures and currents. Also available is the LM4041 with two reverse breakdown voltage versions: adjustable and 1.2V.

Parametrics

LM4040CEM3-5.0 absolute maximum ratings: (1)Reverse Current: 20 mA; (2)Forward Current: 10 mA; (3)Power Dissipation (TA = 25℃): 306 mW; (4)Storage Temperature: -65℃ to +150℃; (5)Lead Temperature Vapor phase (60 seconds): +215℃; (6)Infrared (15 seconds): +220℃; (7)ESD Susceptibility Human Body Model: 2 kV.

Features

LM4040CEM3-5.0 features: (1)Small package: SOT-23; (2)No output capacitor required; (3)Tolerates capacitive loads; (4)breakdown voltage of 5V.

Diagrams

LM4040CEM3-5.0 block diagram
