LM4121AIM5X-1.2

LM4121AIM5X-1.2, Precision Micropower Low Dropout Voltage Reference, 2kV, 350mW, SOT, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.33~0.35

PartNumber:: LM4121AIM5X-1.2

Brand:: National Semiconductor - NS | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM4121AIM5X-1.2
US $0.33 - 0.35
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM4121AIM5X-1.2 is a Precision Micropower Low Dropout Voltage Reference. It is available in a fixed 1.25V and adjustable version with up to 5 mA current source and sink capability. The LM4121AIM5X-1.2 operates with input voltages as low as 1.8V and up to 12V consuming 160 μA (Typ.) supply current. The applications of the LM4121AIM5X-1.2 include Portable, battery powered equipment, Instrumentation and process control, Automotive & Industrial, Test equipment, Data acquisition systems, Precision regulators, Battery chargers, Base stations,Communications, Medical equipment.

Parametrics

LM4121AIM5X-1.2 absolute maximum ratings: (1)Maximum Voltage on input or enable pins: -0.3V to 14V; (2)Output Short-Circuit Duration: Indefinite; (3)Power Dissipation (TA = 25℃) (Note 2): MA05B package θJA 280℃/W; (4)Power Dissipation: 350 mW; (5)ESD Susceptibility (Note 3) Human Body Model: 2 kV; (6)Machine Model: 200V; (7)Storage Temperature Range: -65 to +150℃; (8)Ambient Temperature Range: -40 to +85℃; (9)Junction Temperature Range: -40 to +125℃.

Features

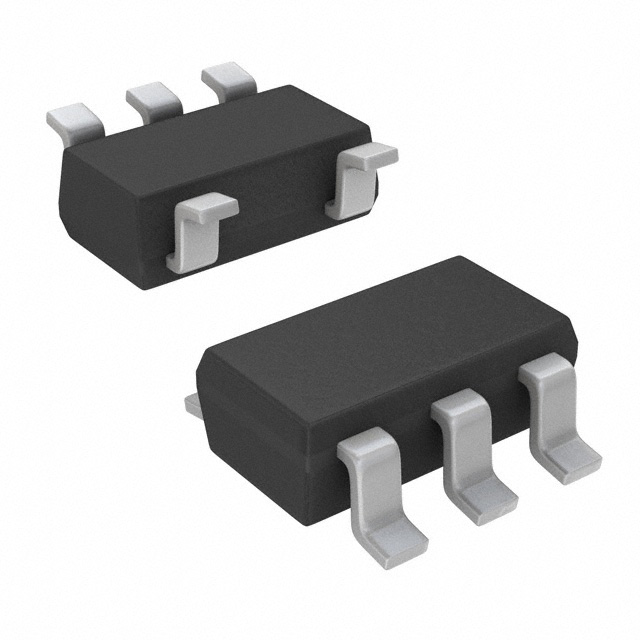

LM4121AIM5X-1.2 features: (1)Small SOT23-5 package; (2)Low voltage operation; (3)High output voltage accuracy: 0.2%; (4)Source and Sink current output: ±5mA; (5)Supply current: 160μA Typ.; (6)Low Temperature Coefficient: 50ppm/℃; (7)Enable pin; (8)Output voltages: 1.25V and Adjustable; (9)Industrial temperature Range: -40℃ to +85℃; (10)(For extended temperature range, -40 to 125℃, contact National Semiconductor).
