The LM431BCMX is a 3-terminal adjustable shunt regulator with guaranteed temperature stability over the entire temperature range of operation. The LM431BCMX is now available in a chip sized package (4-Bump micro SMD) using National’s micro SMD package technology. The output voltage may be set at any level greater than 2.5V (VREF) up to 36V merely by selecting two external resistors that act as a voltage divided network. Due to the sharp turn-on characteristics, the LM431BCMX is an excellent replacement for many zener diode applications.
Parametrics
LM431BCMX absolute maximum ratings: (1)Storage Temperature Range: -65℃ to +150℃; (2)Operating Temperature Range Commercial: 0℃ to +70℃; (3)Soldering Information Infrared or Convection (20 sec.): 235℃; (4)Wave Soldering (10 sec.): 260℃ (lead temp.); (5)Cathode Voltage: 37V; (6)Continuous Cathode Current: 10 mA to +150 mA; (7)Reference Voltage: -0.5V; (8)Reference Input Current: 10 mA; (9)Internal Power Dissipation: 0.78W.
Features
LM431BCMX features: (1)Average temperature coefficient 50 ppm/℃; (2)Temperature compensated for operation over the full temperature range; (3)Programmable output voltage; (4)Fast turn-on response; (5)Low output noise; (6)in micro SMD package; (7)See AN-1112 for micro SMD considerations.

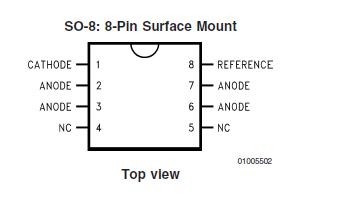

Diagrams
