LM6132AIN

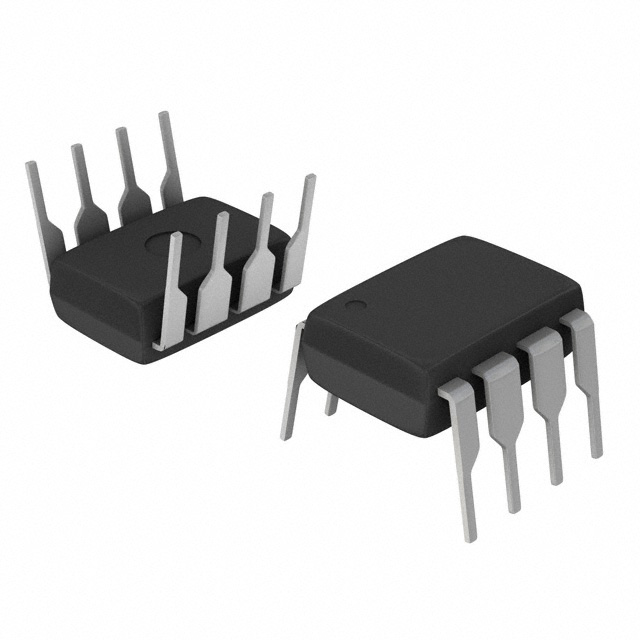

8-DIP, LM6132AIN, 35V, 50 mA, dual low power 10 MHz Rail-to-rail I/O operational amplifier

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.22~2.35 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.22~2.35

PartNumber:: LM6132AIN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM6132AIN
US $2.22 - 2.35
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM6132AIN is a dual low power 10 MHz Rail-to-rail I/O operational amplifier. It provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life. The LM6132AIN can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. The LM6132AIN can also drive; (2)large capacitive loads without oscillating. Operating on supplies from 2.7V to over 24V, the LM6132AIN is excellent for a very wide range of applications, from battery operated systems with large bandwidth requirements to high speed instrumentation.

Parametrics

LM6132AIN absolute maximum ratings: (1)ESD Tolerance: 2500V; (2)Differential Input Voltage: 15V; (3)Voltage at Input/Output Pin: (V+)+0.3V, (V-)-0.3V; (4)Supply Voltage (V+–V-): 35V; (5)Current at Input Pin: ±10 mA; (6)Current at Output Pin: ±25 mA; (7)Current at Power Supply Pin: 50 mA; (8)Lead Temp. (soldering, 10 sec.): 260℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Junction Temperature: 150℃.

Features

LM6132AIN features: (1)Rail-to-Rail input CMVR -0.25V to 5.25V; (2)Rail-to-Rail output swing 0.01V to 4.99V; (3)High gain-bandwidth, 10 MHz at 20 kHz; (4)Slew rate 12 V/μs; (5)Low supply current 360 μA/Amp; (6)Wide supply range 2.7V to over 24V; (7)CMRR 100 dB; (8)Gain 100 dB with RL = 10k; (9)PSRR 82 dB.
