Product Summary

The ACS712TELC-20A provides economical and precise solutions for AC or DC current sensing in industrial, automotive, commercial, and communications systems. The ACS712TELC-20A package allows for easy implementation by the customer. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The ACS712TELC-20A consists of a precise, low-offset, linear Hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer. A precise, proportional voltage is provided by the low-offset, chopper-stabilized BiCMOS Hall IC, which is programmed for accuracy after packaging.

Parametrics

ACS712TELC-20A absolute maximum ratings: (1)Supply Voltage VCC: 8 V; (2)Reverse Supply Voltage VRCC: –0.1 V; (3)Output Voltage VIOUT: 8 V; (4)Reverse Output Voltage VRIOUT: –0.1 V; (5)Output Current Source IIOUT(Source): 3 mA; (6)Output Current Sink IIOUT(Sink): 10 mA; (7)Overcurrent Transient Tolerance IP: 60 A; (8)Maximum Transient Sensed Current IR(max): 60 A; (9)Nominal Operating Ambient Temperature TA Range E: –40 to 85 ℃; (10)Maximum Junction TJ(max): 165 ℃; (11)Storage Temperature Tstg: –65 to 170 ℃.

Features

ACS712TELC-20A features: (1)Low-noise analog signal path; (2)Device bandwidth is set via the new FILTER pin; (3)5 μs output rise time in response to step input current; (4)50 kHz bandwidth; (5)Total output error 1.5% at TA = 25℃, and 4% at -40℃ to 85℃; (6)Small footprint, low-profile SOIC8 package; (7)1.2 mΩ internal conductor resistance; (8)2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8; (9)5.0 V, single supply operation; (10)66 to 185 mV/A output sensitivity; (11)Output voltage proportional to AC or DC currents; (12)Factory-trimmed for accuracy; (13)Extremely stable output offset voltage; (14)Nearly zero magnetic hysteresis; (15)Ratiometric output from supply voltage.

Diagrams

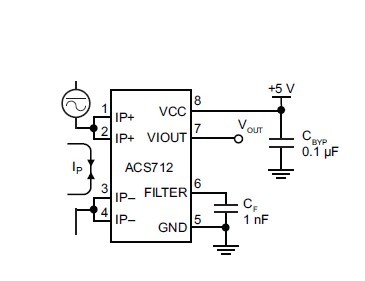

ACS712TELC-20A Typical Application
