Product Summary

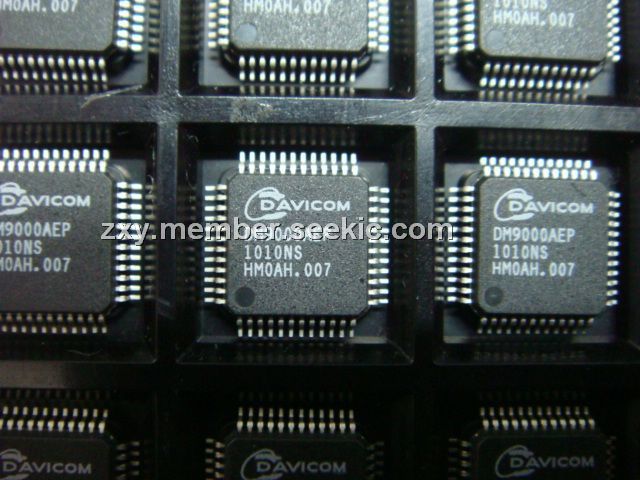

The DM9000AEP is a fully integrated and cost-effective low pin count single chip Fast Ethernet controller with a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V IO tolerance. The DM9000AEP supports 8-bit and 16-bit data interfaces to internal memory accesses for various processors. The PHY of the DM9000AEP can interface to the UTP3, 4, 5 in 10Base-T and UTP5 in 100Base-TX with HP Auto-MDIX. It is fully compliant with the IEEE 802.3u Spec. Its auto-negotiation function will automatically configure the DM9000AEP to take the maximum advantage of
its abilities. The DM9000AEP also supports IEEE 802.3x fullduplex flow control.

Parametrics

DM9000AEP absolute maximum ratings: (1)DVDD Supply Voltage: -0.3 to 3.6 V; (2)VIN DC Input Voltage (VIN): -0.5 to 5.5 V; (3)VOUT DC Output Voltage(VOUT): -0.3 to 3.6 V; (4)Tstg Storage Temperature range: -65 to +150℃; (5)Tc Case Temperature: 0 to 85 ℃; (6)TA Ambient Temperature: 0 to +70℃; (7)LT Lead Temperature: 235℃; (8)LT Lead Temperature: 260℃.

Features

DM9000AEP features: (1)48-pin LQFP; (2)Supports processor interface: byte/word of I/O command to internal memory data operation; (3)Integrated 10/100M transceiver with HP Auto-MDIX; (4)Supports back pressure mode for half-duplex mode flow control; (5)IEEE802.3x flow control for full-duplex mode; (6)Supports wakeup frame, link status change and magic packet events for remote wake up; (7)Support 100M Fiber interface.; (8)Integrated 16K Byte SRAM; (9)Build in 3.3V to 2.5V regulator; (10)Supports early Transmit; (11)Supports IP/TCP/UDP checksum generation and checking; (12)Supports automatically load vendor ID and product ID from EEPROM; (13)Optional EEPROM configuration; (14)Very low power consumption mode:; (15)Power reduced mode (cable detection); (16)Power down mode; (17)Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction.; (18)Compatible with 3.3V and 5.0V tolerant I/O.

Diagrams

DM9000AEP Pin Configuration
