Product Summary
The LMV331IDCKR is a genral-purpose low-voltage comparator. It is the most cost-effective solutions for applications where low-voltage operation, low power, space saving, and price are the primary specifications in circuit design for portable consumer products.
Parametrics
LMV331IDCKR absolute maximum ratings: (1)Supply voltage, VCC+:5.5V; (2)Differential input voltage, VID:±5.5V; (3)Input voltage range, VI (either input):0V to 5.5V; (4)Package thermal impedance, θJA: 252℃/W; (5)Operating virtual junction temperature, TJ:150℃; (6)Storage temperature range, Tstg:-65℃ to 150℃.
Features
LMV331IDCKR features: (1)2.7-V and 5-V Performance; (2)Low Supply Current: 60μA Typ; (3)Input Common-Mode Voltage Range Includes Ground; (4)Low Output Saturation Voltage:200 mV Typ; (5)Open-Collector Output for Maximum Flexibility.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

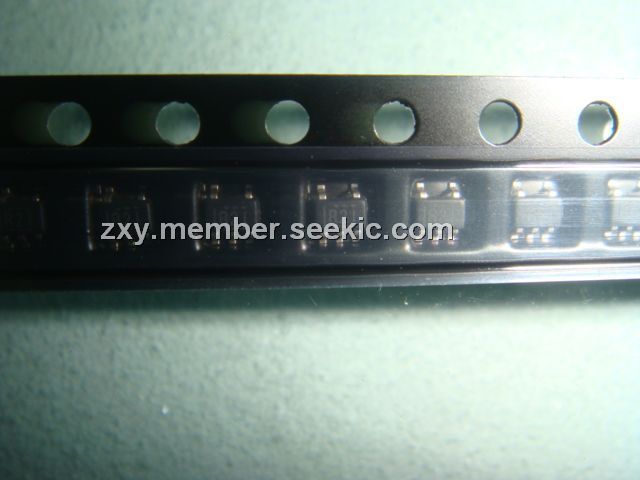

 LMV331IDCKR |
Texas Instruments |
Comparator ICs Single GP LV |
Data Sheet |
|
|
||||||||||||
|
LMV331IDCKRE4 |
Texas Instruments |
Comparator ICs Single Low-Voltage |
Data Sheet |
|
|
||||||||||||
|
LMV331IDCKRG4 |
Texas Instruments |
Comparator ICs Single Low-Voltage |
Data Sheet |
|
|
||||||||||||
