Product Summary
The LT1366CS8 is a dual and quad bipolar op amp which combines rail-to-rail input and output operation with precision specifications. These op amps maintain their characteristics over a supply range of 1.8V to 36V. Operation is specified for 3V, 5V and ±15V supplies. Input offset voltage is typically 150mV, with an open-loop gain AVOL of 1 million while driving a 10k load. Common mode rejection is typically 90dB over the full railto-rail input range, and supply rejection is 110dB.
Parametrics
LT1366CS8 absolute maximum ratings: (1)Total Supply Voltage (V+ to V –): 36V; (2)Input Current: ±15mA; (3)Output Short-Circuit Duration: Continuous; (4)Operating Temperature Range: –40℃ to 85℃; (5)Junction Temperature: 150℃; (6)Storage Temperature Range: –65℃ to 150℃; (7)Lead Temperature: 300℃.
Features
LT1366CS8 features: (1)Input Common Mode Range Includes Both Rails; (2)Output Swings Rail-to-Rail; (3)Low Input Offset Voltage: 150mV; (4)High Common Mode Rejection Ratio: 90dB; (5)High AVOL: >1V/mV Driving 10kW Load; (6)Low Input Bias Current: 10nA; (7)Wide Supply Range: 1.8V to ±15V; (8)Low Supply Current: 375mA per Amplifier; (9)High Output Drive: 30mA; (10)400kHz Gain-Bandwidth Product; (11)Slew Rate: 0.13V/ms; (12)Stable for Capacitive Loads up to 1000pF.

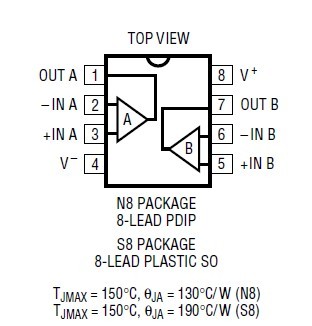

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1366CS8 |
|
IC OP-AMP R-R IN/OUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1366CS8#PBF |
|
IC OP-AMP R-R IN/OUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LT1366CS8#TR |
|
IC OPAMP DUAL R-R I/O 8SOIC |
Data Sheet |
|
|
||||||||||
|
LT1366CS8#TRPBF |
|
IC OP-AMP R-R IN/OUT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||
