Product Summary

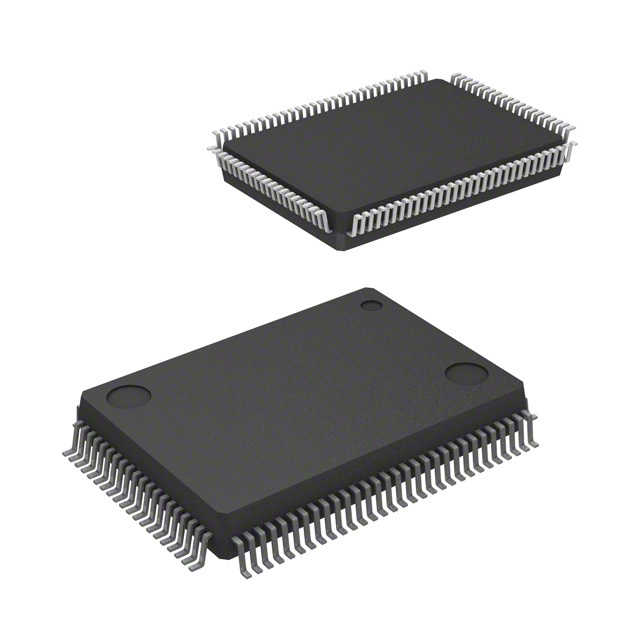

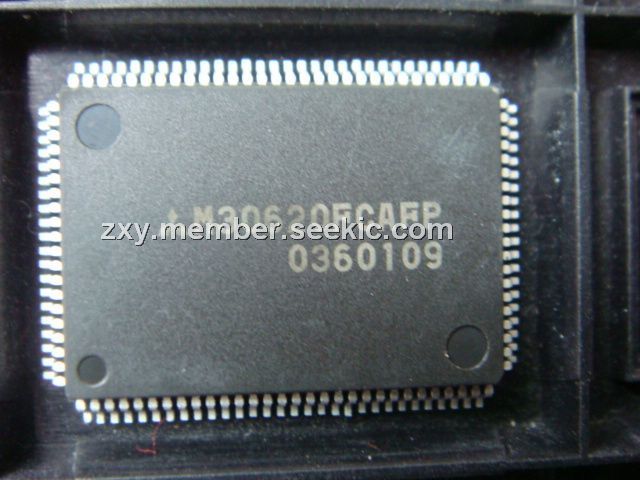

The M30620FCAFP single-chip microcomputer is built using the high-performance silicon gate CMOS process using a M16C/60 Series CPU core and are packaged in a 100-pin plastic molded QFP. The M30620FCAFP operates using sophisticated instructions featuring a high level of instruction efficiency. With 1M bytes of address space, they are capable of executing instructions at high speed. The M30620FCAFP also features a built-in multiplier and DMAC, making them ideal for controlling office, communications, industrial equipment, and other high-speed processing applications. The M30620FCAFP includes a wide range of products with different internal memory types and sizes and various package types.
Parametrics
M30620FCAFP specifications: (1)Vendor: Renesas Electronics America ; (2)Category: Integrated Circuits (ICs) ; (3)Program Memory Size: 128KB (128K x 8) ; (4)RAM Size: 10K x 8 ; (5)Number of I/O: 85 ; (6)Package/Case: 100-BQFP ; (7)Speed: 16MHz ; (8)Oscillator Type: Internal ; (9)Packaging: Tray; (10)Program Memory Type: FLASH ; (11)Core Processor: M16C/60 ; (12)Data Converters: A/D 10x10b, D/A 2x8b ; (13)Core Size: 16-Bit ; (14)Operating Temperature: -40℃ ~ 85℃ ; (15)Connectivity: SIO, UART/USART ; (16)Peripherals: DMA, PWM, WDT ; (17)Voltage - Supply (Vcc/Vdd): 4.2 V ~ 5.5 V ; (18)Lead Free Status: Contains Lead ; (19)RoHS Status: RoHS Non-Compliant.
Features
M30620FCAFP features: (1)Memory capacity: ROM, RAM 3K to 20K bytes; (2)Shortest instruction execution time: 62.5ns (f(XIN)=16MHZ, VCC=5V), 100ns (f(XIN)=10MHZ, VCC=3V, with software one-wait) : Mask ROM, flash memory 5V version; (3)Supply voltage: 4.2V to 5.5V (f(XIN)=16MHZ, without software wait) : Mask ROM, flash memory 5V version, 2.7V to 5.5V (f(XIN)=10MHZ with software one-wait) : Mask ROM, flash memory 5V version; (4)Low power consumption: 25.5mW ( f(XIN)=10MHZ, with software one-wait, VCC = 3V); (5)Interrupts: 25 internal and 8 external interrupt sources, 4 software, interrupt sources; 7 levels (including key input interrupt).

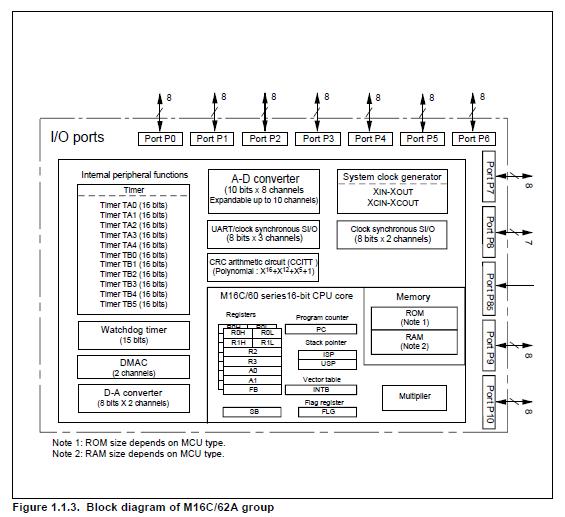

Diagrams
