Product Summary

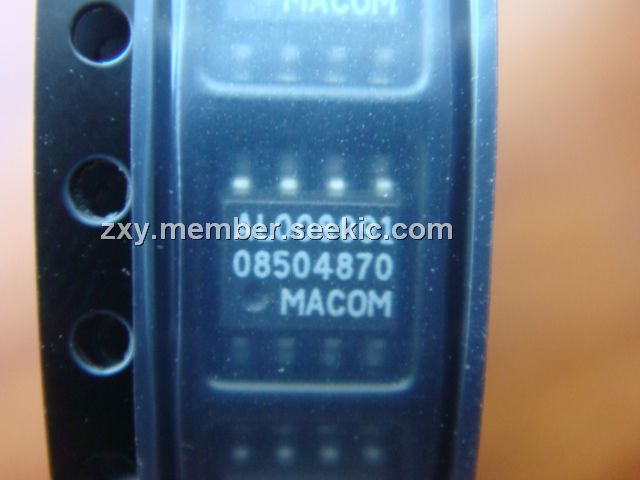

The MAAL-008091 is a high dynamic range, GaAs MMIC, low noise amplifier in a lead-free SOIC-8, surface mount plastic package. It employs external input matching to obtain optimum noise figure performance and operating frequency flexibility. The MAAL-008091 also features flexible biasing to control the current consumption vs. dynamic range trade-off. The MAAL-008091 can operate from any supply voltage in the 3 V to 8 V range. Its current can be controlled over a range of 20 mA to 80 mA with an external resistor. The MAAL-008091 is ideally suited for use where low noise figure, high gain, high dynamic range, and low power consumption are required. Typical applications include receiver front ends in AMPS, GSM, and ETACS base stations. It is also useful as a gain block, buffer, driver, and IF amplifier in both fixed and portable cellular and 900 MHz ISM systems.

Parametrics

MAAL-008091 absolute maximum ratings: (1)VDD: +10 VDC; (2)Input Power: +10 dBm; (3)Current: 120 mA; (4)Channel Temperature: +150℃; (5)Operating Temperature: -40℃ to +85℃; (6)Storage Temperature: -65℃ to +150℃.

Features

MAAL-008091 features: (1)Low Noise Figure: 1.2 dB; (2)High Input IP3: +18 dBm at 8 V, 60 mA bias; +6.5 dBm at 3V, 20 mA bias; (3)High Gain: 15 dB; (4)Single Supply: +3 to +8 VDC; (5)Adjustable current: 20 to 80 mA with external resistor; (6)Lead-Free SOIC-8 Package; (7)100% Matte Tin Plating over Copper; (8)Halogen-Free Green Mold Compound; (9)260℃ Reflow Compatible; (10)RoHS Compliant Version of AM50-0003.

Diagrams

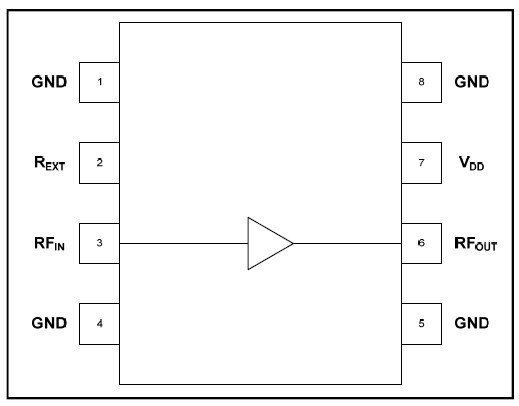

MAAL-008091 Functional Block Diagram
