Product Summary
The AT65-0107TR is a GaAs FET 6-bit digital attenuator with a 0.5 dB minimum step size and a 31.5 dB total attenuation range. This device is in a SOIC-24 wide body, plastic surface mount package. The AT65-0107TR is ideally suited for use where accuracy, fast speed, very low power consumption and low costs are required.
Parametrics
AT65-0107TR absolute maximum ratings: (1)Max. Input Power: 0.05 GHz +27 dBm; 0.5 to 2.0 GHz+34 dBm; (2)VCC -0.5V ≤ VCC ≤ +7.0V; (3)VEE -8.5V ≤ VEE ≤ +0.5V; (4)VCC - VEE -0.5V ≤ VCC - VEE ≤ 14.5V; (5)Vin4 -0.5V ≤ Vin ≤ VCC + 0.5V; (6)Operating Temperature -40℃ to +85℃; (7)Storage Temperature -65℃ to +125℃.
Features
AT65-0107TR features: (1)Attenuation: 0.5 dB Steps to 31.5 dB; (2)Low DC Power Consumption; (3)Plastic SOIC, Wide Body, SMT Package; (4)Integral TTL Driver; (5)50 ohm Impedance; (6)Test Boards are Available; (7)Tape and Reel Packaging Available; (8)SOW-24 Package.

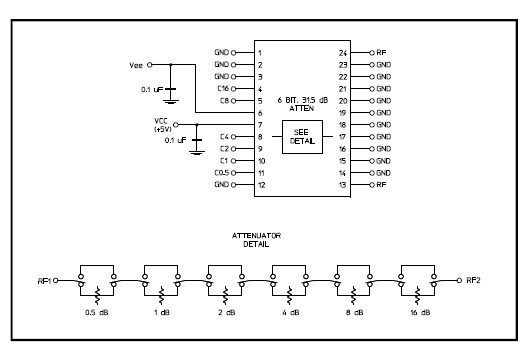

Diagrams
 |
