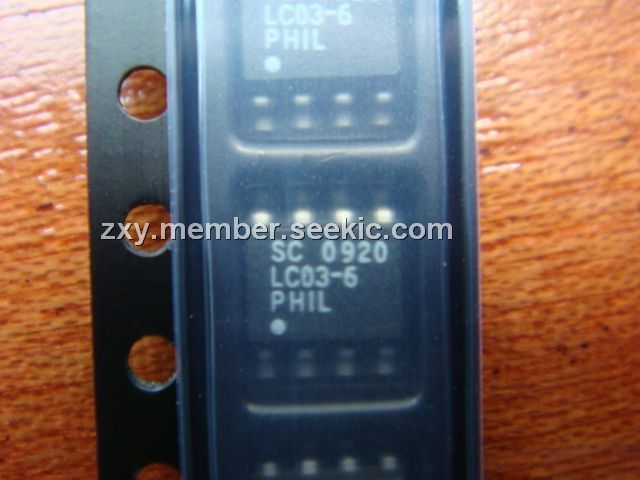

LC03-6.TBT

transient voltage suppressor, protect components, SO-8 surface mount package

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~10.00

PartNumber:: LC03-6.TBT

Brand:: SEMTECH ELECTRONICS LTD. - irasia | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:LC03-6.TBT
US $0.01 - 10.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

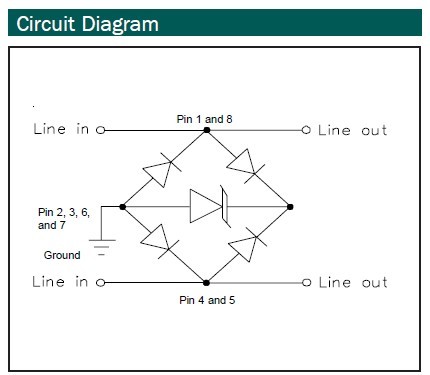

The LC03-6.TBT transient voltage suppressor is designed to protect components which are connected to high speed telecommunication lines from voltage surges caused by lightning, electrostatic discharge (ESD), cable discharge events (CDE), and electrical fast transients (EFT). TVS diodes are ideal for use as board level protection of sensitive semiconductor components. The LC03-6.TBT combines a TVS diode with a rectifier bridge to provide transient protection in both common and differential mode with a single device. The capacitance of the device is minimized (< 25pF) to ensure correct signal transmission on high speed lines . The LC03-6.TBT meetsthe short-haul (intra-building) transient immunity requirements of Bellcore 1089 for telecommunications applications. The SO-8 surface mount package allows flexibility in the design of crowded PC boards.

Parametrics

Absolute maximum ratings: (1)Peak Pulse Power (tp = 8/20μs), Ppk: 2000Watts; (2)Peak Pulse Current (tp = 8/20μs), Ipp: 100A; (3)Lead Soldering Temperature, TL: 260 (10 sec.)℃; (4)Operating Temperature, TJ: -55 to +125℃; (5)Storage Temperature, Tstg: -55 to +150℃.

Features

Features: (1)2000 watts peak pulse power (tp = 8/20μs); (2)Transient protection for high-speed data lines to Bellcore 1089 (Intra-Building) 100A (2/10μs); (3)Protects two lines in common and differential mode; (4)Low capacitance for high-speed interfaces; (5)Low clamping and operating voltage; (6)Integrated structure saves board space and increases reliability; (7)Solid-state silicon avalanche technology.
