Product Summary

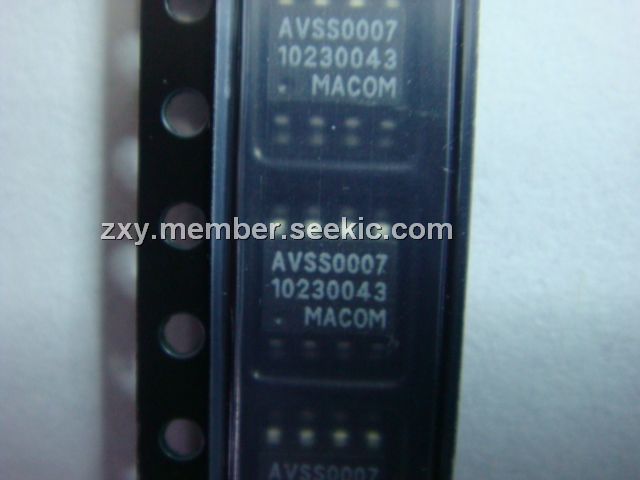

The MAAVSS0007TR is a GaAs MESFET MMIC voltage variable absorptive attenuator in a lead-free SOIC-8 surface mount plastic package. The MAAVSS0007TR is ideally suited for use where linear attenuation, fine tuning and very low power consumption are required. Typical applications of the MAAVSS0007TR include radio, cellular, GPS equipment and automatic gain/level control circuits. The MAAVSS0007 is fabricated with a monolithic GaAs MMIC using a mature 1-micron process. The process features full chip passivation for increased performance and reliability.
Parametrics
MAAVSS0007TR absolute maximum ratings: (1)Input Power +21 dBm; (2)Supply Voltage VCC -1 V < VCC < +8 V; (3)Control Voltage VC; (4)-1 V < VC < VCC +0.5 V; (5)Operating Temperature -40℃ to +85℃; (6)Storage Temperature -65℃ to +150℃.
Features
MAAVSS0007TR features: (1)Single Positive Voltage Control: 0 to +5 Volts; (2)40 dB Attenuation Range at 900 MHz; (3)±2 dB Linearity from BSL; (4)Low DC Power Consumption; (5)Tape and Reel Packaging Available; (6)Lead-Free SOIC-8 Package; (7)100% Matte Tin Plating over Copper; (8)Halogen-Free GreenMold Compound; (9)260℃ Reflow Compatible; (10)RoHS Compliant Version of AT-108.

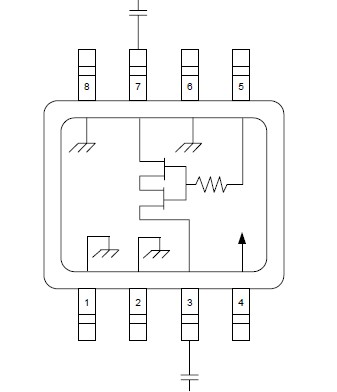

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAAVSS0007TR-3000 |
M/A-COM Technology Solutions |
Active Attenuator 500-3000MHz 40dB VVA IL 3.5dB Max. |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
|
MAAV-007941 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAV-007941-TR3000 |
M/A-COM Technology Solutions |
Active Attenuator DC-2GHz 12dB VVA -40C 85C |
Data Sheet |
|
|
||||||||||
|
MAAV-008022 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAV-008022-TR3000 |
M/A-COM Technology Solutions |
Active Attenuator .5-2.0GHz 4dB VVA IL 3.0dB TYP. |
Data Sheet |
|
|
||||||||||
|
MAAVCC0001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
|
MAAVCC0002 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
