Product Summary
The MAR-3SM is a monolithic amplifier.
Parametrics
MAR-3SM absolute maximum ratings: (1)MAXIMUM POWER (dBm): Output:+10.0, Input: +13; (2)DYNAMIC RANGE: NF: 6.0, IP3: +23.0; (3)VSWR (:1) Typ: In: 1.5, Out: 1.7; (4)ABSOLUTE MAXIMUM (25℃) I: 70mA; P: 400mW; (5)DC OPERATING POWER at Pin 3: Current:35mA; Volt:5.00.
Features
MAR-3SM features: (1)cascadable; (2)excellent repeatability; (3)wide bandwidth, DC to 2500 MHz; (4) unconditionally stable, most models; (5)low cost; (6)hermetically sealed, RAM models; (7)low noise figure, 2.8 dB typ; (8)high output power, up to +18 dBm typ.

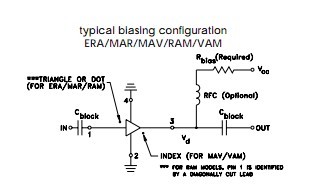

Diagrams
![]() |
