Product Summary

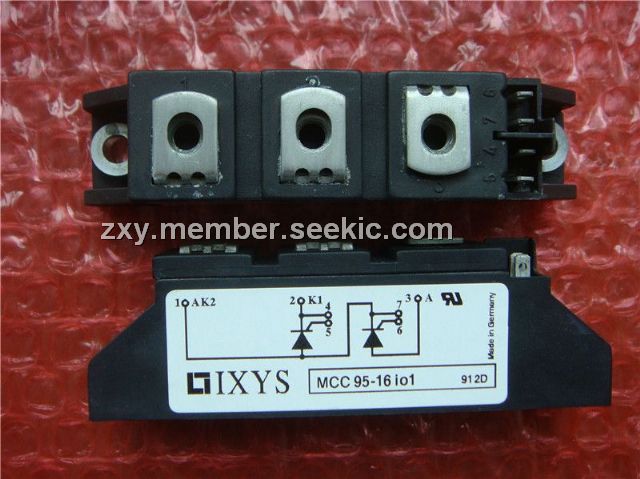

The MCC95-16IO1B is a thyristor module. It has some applications like DC motor control, softstart AC motor controller, light, heat and temperature control.

Parametrics

MCC95-16IO1B absolute maximum ratings: (1)ITRMS, IFRMS, TVJ=TVJM: 180 A; (2)ITAVM, IFAVM, TC=85℃; 180°sine: 116 A; (3)(dv/dt)cr, TVJ=TVJM; VDR=2/3 VDRM: 1000 V/μs; (4)PGM, TVJ=TVJM, tP=30μs: 10 W; IT=ITAVM,tP=300μs: 5 W; (5)PGAV: 0.5 W; (6)VRGM: 10 V; (7)TVJ: -40 to +125 ℃; (8)TVJM, 125 ℃ ; (9)VISOL, 50/60 Hz, RMS, t = 1 min: 3000 V~; IISOL≤1 mA t = 1s: 3600 V~; (10)Weight, Typical including screws: 90g.

Features

MCC95-16IO1B features: (1)International standard package, JEDEC TO-240 AA; (2)Direct copper bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V~; (5)UL registered, E 72873; (6)Gate-cathode twin pins for version 1.

Diagrams

MCC95-16IO1B circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCC95-16io1B
MCC95-16io1B

Ixys

Discrete Semiconductor Modules 95 Amps 1600V

Data Sheet

Negotiable
