Product Summary
The MIC4101YM is a high frequency, 100V Half Bridge MOSFET driver. It features fast 30ns propagation delay times. The low-side and high-side gate drivers are independently controlled and matched to within 3ns typical. The MIC4101YM has TTL input thresholds. The MIC4101YM include a high voltage internal diode that charges the high-side gate drive bootstrap capacitor. The applications of the MIC4101YM include High voltage buck converters, Push-pull converters, Full- and half-bridge converters, Active clamp forward converters.
Parametrics
MIC4101YM absolute maximum ratings: (1)Supply Voltage (VDD, VHB – VHS): -0.3V to 18V; (2)Input Voltages (VLI, VHI): -0.3V to VDD + 0.3V; (3)Voltage on LO (VLO): -0.3V to VDD + 0.3V; (4)Voltage on HO (VHO): VHS - 0.3V to VHB + 0.3V; (5)Voltage on HS (continuous): -1V to 110V; (6)Voltage on HB: 118V; (7)Average Current in VDD to HB Diode: 100mA; (8)Junction Temperature (TJ):–55℃ to +150℃; (9)Storage Temperature (Ts): -60℃ to +150℃; (10)EDS Rating(3): Note 3.
Features
MIC4101YM features: (1)Bootstrap supply max voltage to 118V DC; (2)Supply voltage up to 16V; (3)Drives high- and low-side N-Channel MOSFETs with independent inputs; (4)CMOS input thresholds (MIC4100); (5)TTL input thresholds (MIC4101); (6)On-chip bootstrap diode; (7)Fast 30ns propagation times; (8)Drives 1000pF load with 10ns rise and fall times; (9)Low power consumption; (10)Supply under-voltage protection; (11)3Ωpull up , 3?pull down output resistance; (12)Space saving SOIC-8L package; (13)-40℃ to +125℃ junction temperature range.

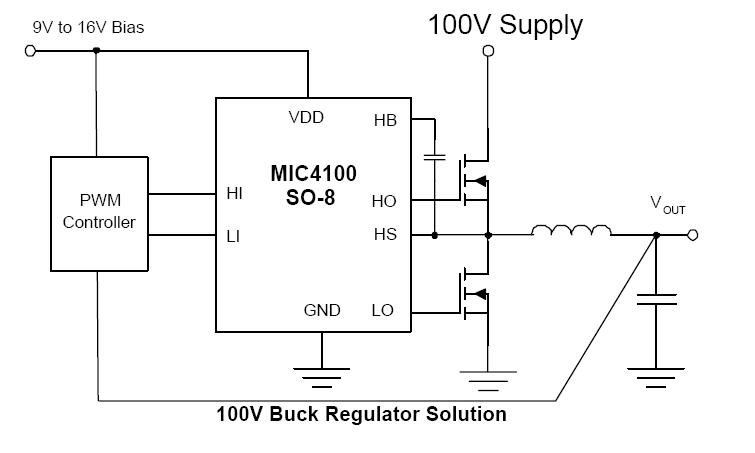

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() MIC4101YM |
![]() |
![]() IC MOSFET DVR HALF BRIDGE 8-SOIC |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() MIC4101YM TR |
![]() |
![]() IC DRIVER MOSFET 100V TTL 8-SOIC |
![]() Data Sheet |
![]()
|
|
