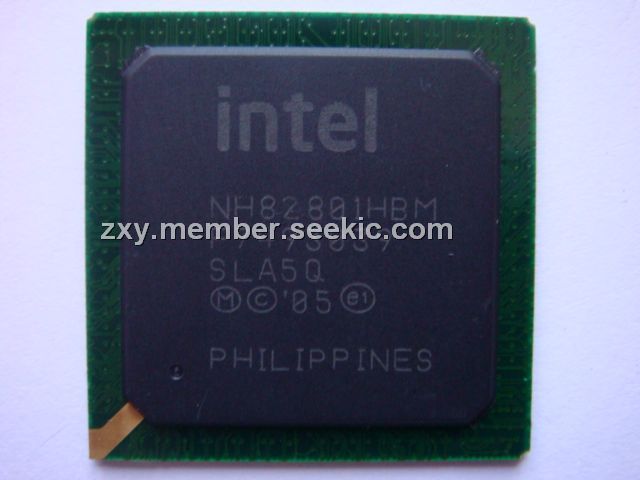

NH82801HBM

Product Summary

The NH82801HBM is an I/O Controller. It provides extensive I/O support. The NH82801HBM incorporates a variety of PCI devices and function. The NH82801HBM is divided into seven logical devices. The first device is the DMI-To-PCI bridge. The second device contains most of the standard PCI functions that have existed in legacy PCI-to-ISA bridges (South Bridges). The third and fourth devices are the USB host controller devices. The fifth device is PCI Express device. The sixth device is the Intel HD Audio controller device, and the seventh device (Device 25) is the GbE controller device.

Parametrics

NH82801HBM absolute maximum ratings: (1)Voltage on any 3.3 V Pin with respect to Ground: -0.5 to Vcc3_3 + 0.5 V; (2)Voltage on any 5 V Tolerant Pin with respect to Ground (V5REF = 5 V): -0.5 to V5REF + 0.5 V; (3)1.05 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (4)1.25 V Supply Voltage with respect to VSS: -0.5V to 2.1V; (5)1.5 V Supply Voltage with respect to VSS: -0.5 to 2.1 V; (6)3.3 V Supply Voltage with respect to VSS: -0.5 to 4.6 V; (7)5.0 V Supply Voltage with respect to VSS: -0.5 to 5.5 V; (8)V_CPU_IO Supply Voltage with respect to VSS: -0.5 to 2.1 V.

Features

NH82801HBM features: (1)6 PCI Express root ports; (2)Supports PCI Express 1.1; (3)Ports 1-4 can be statically configured as four x1 or one x4; (4)Support for full 2.5 Gb/s bandwidth in each direction per x1 lane; (5)Independent Bus Master logic for eight general purpose streams: four input and four output; (6)Support four external Codecs; (7)Supports variable length stream slots; (8)Supports multichannel, 32-bit sample depth, 192 kHz sample rate; (9)output; (10)Provides mic array support; (11)Allows for non-48 kHz sampling output; (12)NEW: up to five UHCI Host Controllers, supporting ten external; (13)ports; (14)NEW: up to two EHCI Host Controllers that supports ten ports; (15)NEW: Includes up to two USB 2.0 High-speed Debug Ports; (16)Supports wake-up from sleeping states S1–S5; (17)Supports legacy Keyboard/Mouse software.

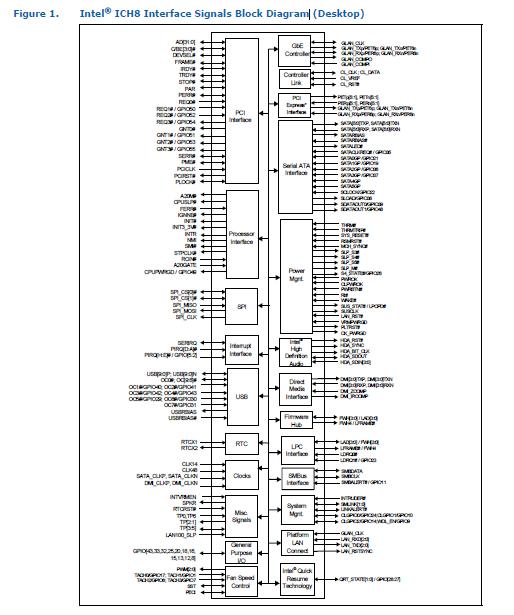

Diagrams
