Product Summary

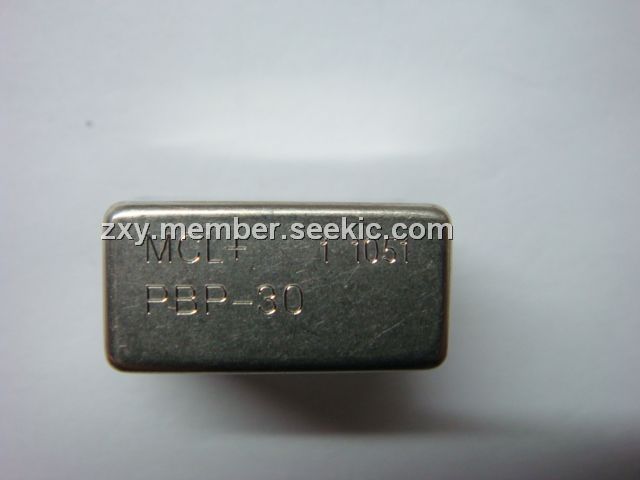

The PBP-30 is a filter.
Parametrics
PBP-30 absolute maximum ratings: (1)center FREQ: 30MHz; (2) passband, MHz 1.L. 1.5dB max: 27.0-33.0MHz; (3)3 dB bandwidth typical: 25-35MHz; (4) stop bands: I.Loss>20dB at 22&40MHz; I.Loss>35dB at 3.2&99-1000MHz; (5)passband Vswr: 1.7:1 max; (6)stop band Vswr: 16:1 typ.
Features
PBP-30 features: (1)Flat group delay for low pulse distortion; (2)Delay and selectivity are both controlled by design; (3)Wide selection of cutoff frequencies, 48-to-1 range, Custom Fco values are available; (4)Choice of pin package or connectorized models.

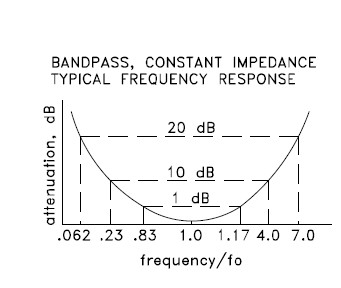

Diagrams
 |
