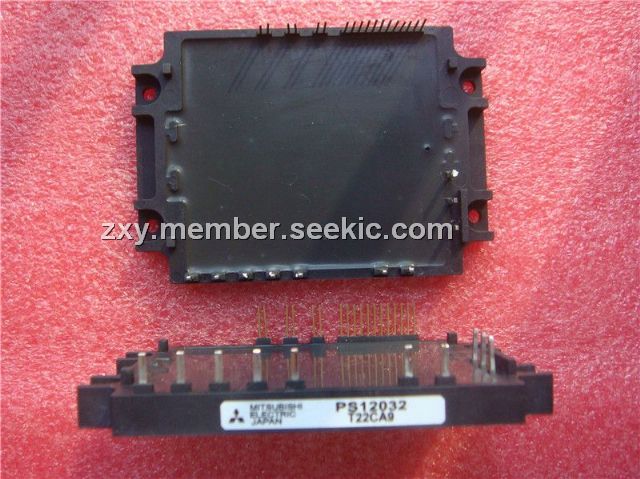

Product Summary
The Powerex PS12032 Application Specific IPM (ASIPM) is an inteligent power modules that integrate power devices, gate drive and protection circuitry in a compact package for use in small inverter applications up to 20kHz. Use of application specific HVICs allow the designer to reduce inverter size and overall design time. The PS12032 is ideal for: Smart Motors, General Purpose Inverters, Small Motor Control.
Parametrics
PS12032 absolute maximum ratings: (1)Power Device Junction Temperature,Tj: -20 to 125 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Case Operating Temperature,TC: -20 to 100 ℃; (4)Mounting Torque, M3.5 Mounting Screws: 11.25 in-lb; (5)Module Weight (Typical): 127 Grams; (6)Isolation Voltage, VISO: 2500 Volts.
Features
PS12032 features: (1)Rectifier Bridge for 3-phase AC-to-DC Power Conversion; (2)3-phase IGBT Inverter Bridge; (3)Integrated HVICs for Gate Drive, Protection and System Control Functions; (4)Built-in Thermistor; (5)Direct Connection to DSP/CPU.

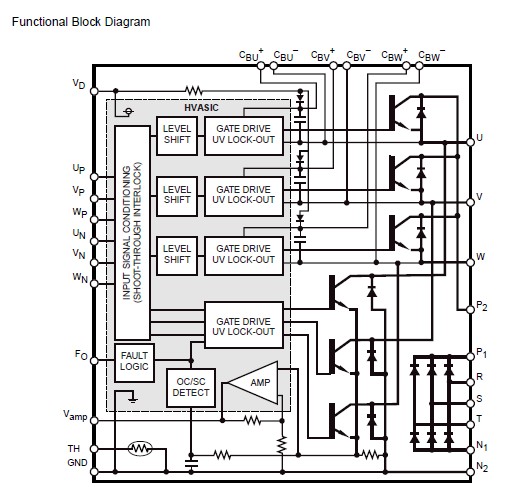

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS12032 |
|
MOD IPM 3PHASE IGBT 1200V 5A |
Data Sheet |
