Product Summary

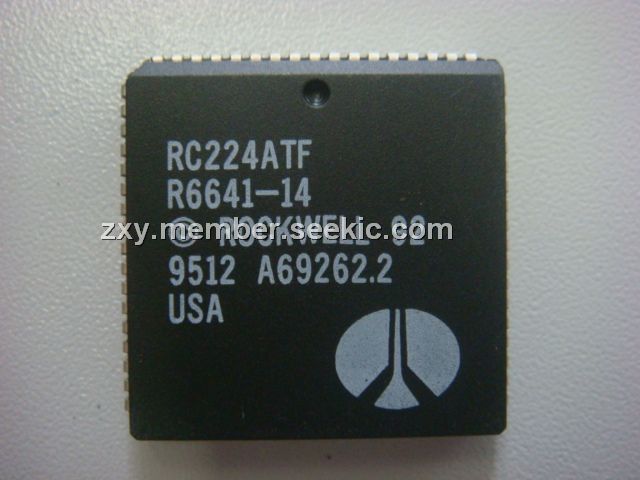

The guide of this data sheet/designer addendum defines the extended operating temperature range and power requirements for the RC224ATF modem device. It is identical to the RC224ATF, but with a wider operating temperature range.
Parametrics
RC224ATF specifications: (1)Normal typical current @ TA=25℃: 30mA; maximum current @ TA=0℃: 43mA; maximum current @ TA=-40℃: 56mA; typical power @ TA=25℃: 150mW; maximum power @ TA=0℃: 225mW; maximum power @ TA=-40℃: 295mW; (2)Sleep typical current @ TA=25℃: 6mA; maximum current @ TA=0℃: 7.6mA; maximum current @ TA=-40℃: 10mA; typical power @ TA=25℃: 30mW; maximum power @ TA=0℃: 40mW; maximum power @ TA=-40℃: 53mW; (3)Stop typical current @ TA=25℃: 0.4mA; maximum current @ TA=0℃: 1mA; maximum current @ TA=-40℃: 1.3mA; typical power @ TA=25℃: 2mW; maximum power @ TA=0℃: 5mW; maximum power @ TA=-40℃: 6.8mW.
 |
