Product Summary
The REF3240AMDBVREP is a very low drift, micropower, low-dropout, precision voltage reference available in the tiny SOT23-6 package. The small size and low power consumption (120μA max) of the REF3240AMDBVREP make it ideal for portable and battery-powered applications. This reference is stable with any capacitive load. The REF3240AMDBVREP can be operated from a supply as low as 5mV above the output voltage, under no load conditions. All models are specified for the wide temperature range of -40℃ to +125℃. The applications of the REF3240AMDBVREP include portable equipment, data acquisition systems, medical equipment, test equipment.
Parametrics
REF3240AMDBVREP absolute maximum ratings: (1)Input Voltage: +7.5V; (2)Operating Temperature: -55℃ to +135℃; (3)Storage Temperature: -65℃ to +150℃; (4)Junction Temperature: +150℃; (5)Lead Temperature (soldering, 10s): +300℃; (6)ESD Rating: Human Body Model: 4kV, Charged Device Model: 1kV, Machine Model: 400V.
Features
REF3240AMDBVREP features: (1)excellent specified drift performance: 7ppm/℃ (max) at 0℃ to +125℃, 20ppm/℃ (max) at -40℃ to +125℃; (2)microsize package: SOT23-6; (3)high output current: ±10mA; (4)high accuracy: 0.01%; (5)low quiescent current: 100μA; (6)low dropout: 5mV.

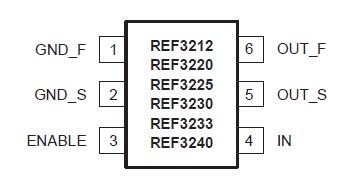

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 REF3240AMDBVREP |
Texas Instruments |
Voltage & Current References Mil Enhance 4ppm 100 uA Ser Vltg Ref |
Data Sheet |
|
|
||||||||
|
REF3240AMDBVREPG4 |
Texas Instruments |
Voltage & Current References EP 4Ppm/Deg 100Ua Ser Vltg Ref |
Data Sheet |
|
|
||||||||
