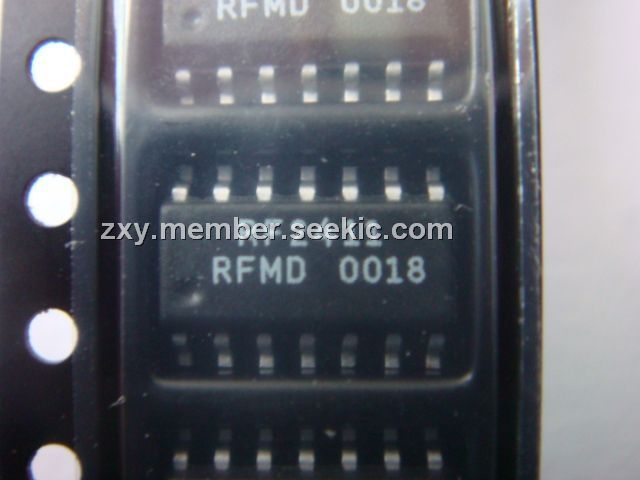

Product Summary
The RF2411 is a monolithic integrated UHF receiver front-end. The IC contains all of the required components to implement the RF functions of the receiver except for the passive filtering and LO generation. The RF2411 contains an LNA (low-noise amplifier), a second RF amplifier, and a balanced mixer which can drive a single-ended or balanced load. The output of the LNA is made available as a pin to permit the insertion of a bandpass filter between the LNA and the RF/Mixer section. The applications of the RF2411 include UHF Digital and Analog Receivers, Digital Communication Systems, Spread-Spectrum Communication Systems, Commercial and Consumer Systems, Portable Battery-Powered Equipment, General Purpose Frequency Conversion.
Parametrics
RF2411 absolute maximum ratings: (1)Supply Voltage: -0.5 to 7.0 VDC; (2)Input LO and RF Levels: +6 dBm; (3)Ambient Operating Temperature: -40 to +85 ℃; (4)Storage Temperature: -40 to +150 ℃.
Features
RF2411 features: (1)Single 3V to 6.5V Power Supply; (2)500MHz to 1900MHz Operation; (3)25dB Small Signal Gain; (4)2.5dB Cascaded Noise Figure; (5)8.5mA DC Current Consumption; (6)-8dBm Input IP3.

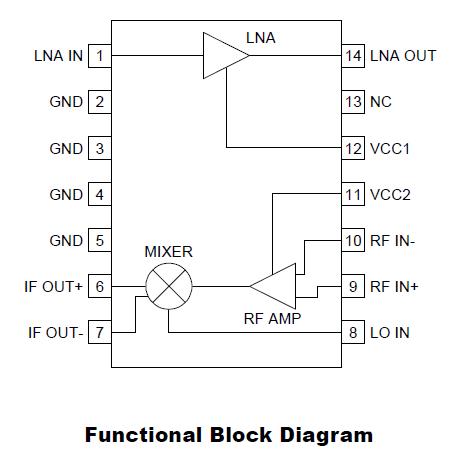

Diagrams
