RT9818D-26GV

RT9818D-26GV micro-power voltage detector, SOT-23, -0.3V to 6.0V, 20mA, 0.25W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.16~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.16~0.20

PartNumber:: RT9818D-26GV

Brand:: Richtek Technology Corporation - richtek | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:RT9818D-26GV
US $0.16 - 0.20
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

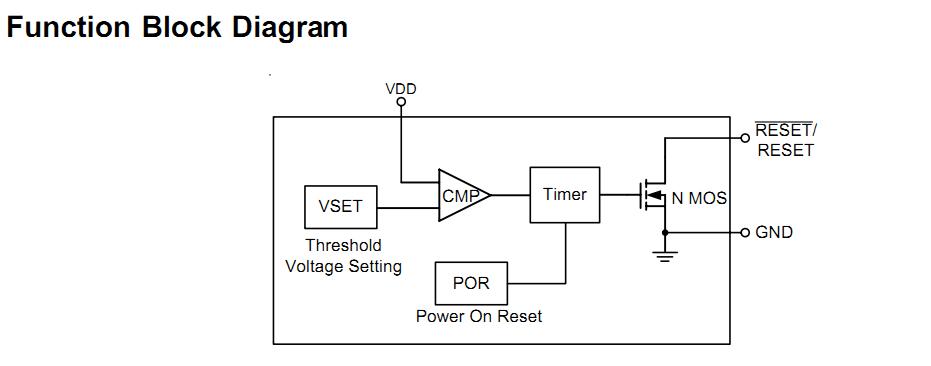

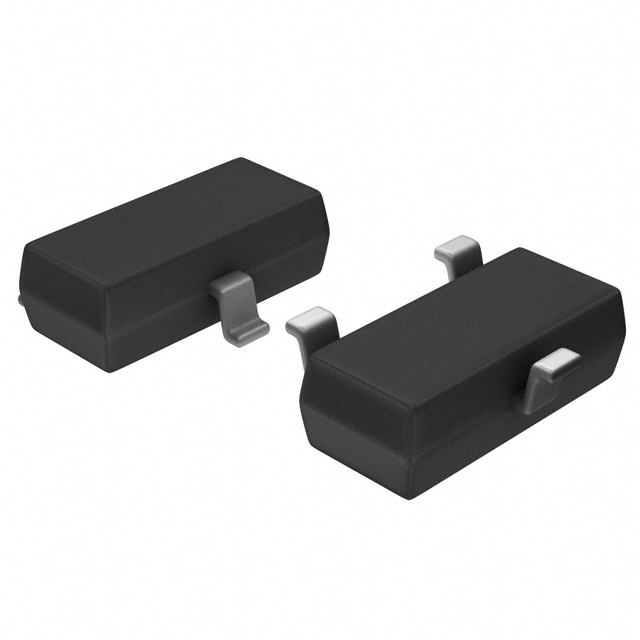

The RT9818D-26GV is a micro-power voltage detector supervising the power supply voltage level for microprocessors (μP) or digital systems. The RT9818D-26GV provides internally fixed threshold levels with 0.1V per step ranging from 1.2V to 5V, which covers most digital applications. The RT9818D-26GV features low supply current of 3μA. The RT9818D-26GV performs supervisory function by sending out a reset signal whenever the VDD voltage falls below a preset threshold level. This reset signal will last the whole period before VDD recovering. Once VDD recovered upcrossing the threshold level, the reset signal will be released after a certain delay time. The RT9818D-26GV is provided in SC-82, SC-70-3, SOT-23-3, SOT-23-5 and SOT-89 packages.

Parametrics

RT9818D-26GV absolute maximum ratings: (1)Terminal Voltage (with Respect to GND), VDD: -0.3V to 6.0V; (2)All Other Inputs: -0.3V to VDD+0.; (3)Input Current, IVDD: 20mA; (4)Power Dissipation, PD: 0.25W; (5)Package Thermal Resistance, θJA: 400℃/W; (6)Lead Temperature (Soldering, 10sec.): 260℃; (7)Storage Temperature Range: -65 to 125℃; (8)z ESD Susceptibility, HBM (Human Body Mode): 2kV; MM (Machine Mode): 200V.

Features

RT9818D-26GV features: (1)Internally Fixed Threshold 1.2V to 5V in 0.1V Step; (2)High Accuracy ±1.5%; (3)Low Supply Current 3μA; (4)No External Components Required; (5)Quick Reset within 20μs; (6)Built-in Recovery Delay Include 0ms, 55ms, 220ms,450ms Options; (7)Low Functional Supply Voltage 0.9V; (8)N-Channel Open-Drain Output; (9)Small SC-82, SC-70-3, SOT-23-3, SOT-23-5, SOT-89 Packages; (10)RoHS Compliant and 100% Lead (Pb)-Free.
