Product Summary
The S1M-13 is the 1.0A surface mount glass passivated rectifier.
Parametrics
S1M-13 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 50, 100, 200, 400, 600, 800, 1000 V; (2)Average Rectified Output Current @ TT = 100℃:1.0 A ; (3)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load: 30 A ; (4)Forward Voltage @ IF = 1.0A: 1.1 V ; (5)Peak Reverse Leakage Current @ TA = 25℃: 5.0μA; (6)at Rated DC Blocking Voltage @ TA = 125℃: 100 μA ; (7)Maximum Reverse Recovery Time (Note 4): 2.0 μs ; (8)Typical Total Capacitance (Note 1):10 pF ; (9)Typical Thermal Resistance, Junction to Terminal (Note 2): 30 ℃/W; (10)Operating and Storage Temperature Range: -65 to +150℃.
Features
S1M-13 features: (1)Glass Passivated Die Construction; (2)Low Forward Voltage Drop and High Current Capability; (3)Surge Overload Rating to 30A Peak; (4)Ideally Suited for Automated Assembly; (5)Lead Free Finish/RoHS Compliant (Note 3).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

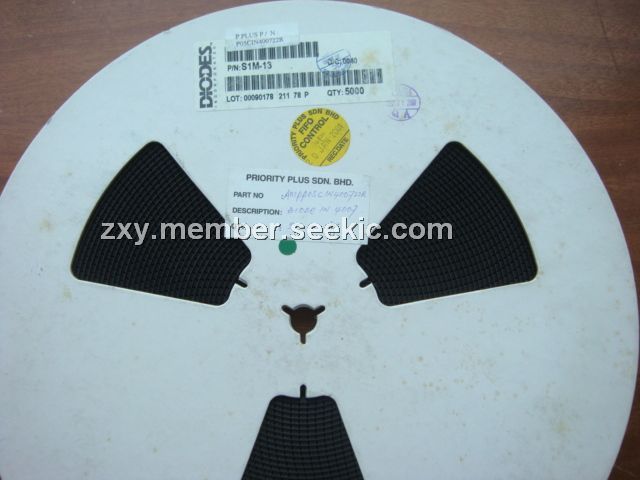

 S1M-13 |
Diodes Inc. |
Rectifiers 1000V 1A |
Data Sheet |
Negotiable |
|
||||||||||||
|
S1M-13-F |
Diodes Inc. |
Rectifiers 1000V 1A |
Data Sheet |
|
|
||||||||||||
