Product Summary

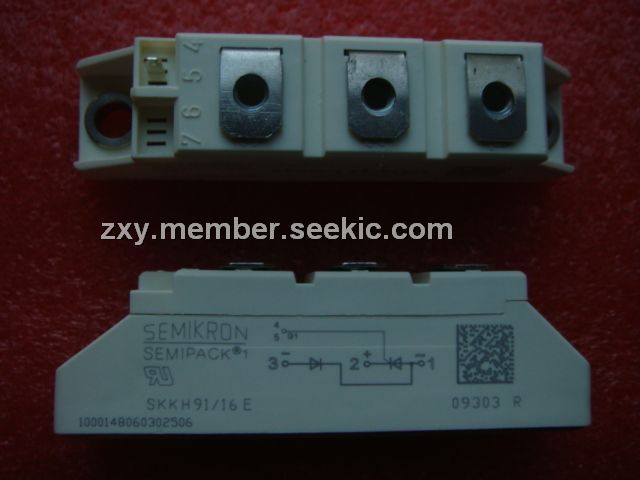

The SKKH91/16E is a thyristor. The typical applications of the device include DC motor control, AC motor soft starters, Temperature control and Professional light dimming.
Parametrics
SKKH91/16E absolute maximum ratings: (1)IATV: 95A when Tcase=85℃; (2)ID: 70/85A when Tamb=45℃; 140/175A when Tamb=35℃; (3)IRMS: 190/3×135A when Tamb=35℃; (4)ITSM: 2000A when Tvj=25℃; 10ms; 1750A when Tvj=125℃; 10ms; (5)i2t: 20000A2S when Tvj=25℃; 15000A2S when Tvj=125℃; (6)VGT: 3V when Tvj = 25℃; dc; (7)IGT: 150mA when Tvj = 25℃; dc; (8)VGD: 0.25aV when Tvj = 125℃; dc; (9)IGD: 6mA when Tvj = 125℃; dc.
Features
SKKH91/16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63532.
Diagrams
 |
