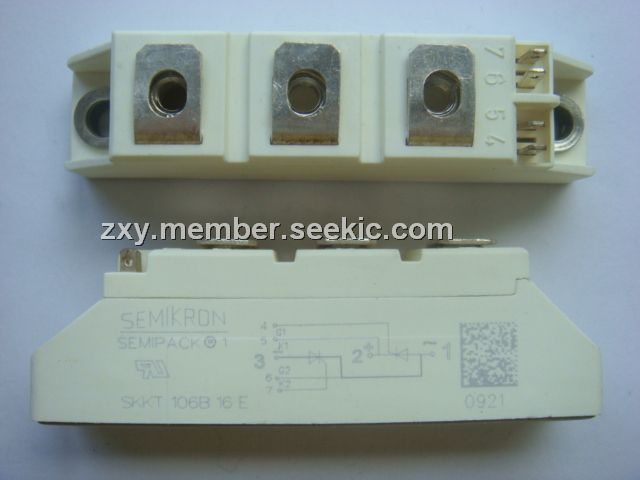

Product Summary

The SKKT106B16E is a thyristor/diode module. The applications of the SKKT106B16E include DC motor control, AC motor soft starters, temperature control, professional light dimming.

Parametrics

SKKT106B16E absolute maximum ratings: (1)ITAV: 106 (78) A at Tc=85 (100)℃; (2)ID: 145/180 A at Ta=35℃, 190/260 A at Ta=35℃; (3)IRMS: 200/3*140 A; (4)ITSM: 2250 A at Tvj=25, 1900 A at Tvj=130℃; (5)i2t: 250000 A2s at Tvj=25℃, 18000 A2s at Tvj=130℃; (6)VT: 1.65 V max at Tvj=25℃, IT=500 A; (7)VT(TO): 0.9 V max at Tvj=125℃; (8)rT: 2 mΩ max at Tvj=130℃; (9)IDD; IRD: 20 mA max at Tvj=130℃, VRD=VRRM.

Features

SKKT106B16E features: (1)heat transfer and isolation through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.

Diagrams

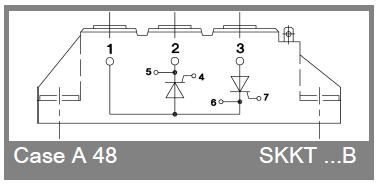

SKKT106B16E diagram
