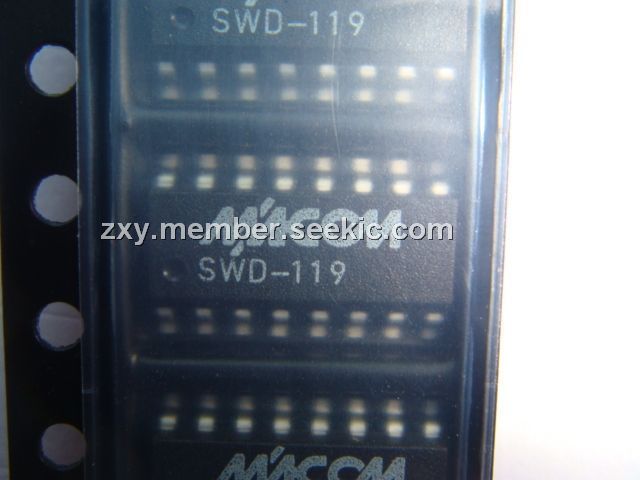

Product Summary
The SWD-119 is a quad channel driver used to translate TTL control inputs into gate control voltages for GaAs FET microwave switches and attenuators. High speed analog CMOS technology of SWD-119 is utilized to achieve low power dissipation at moderate to high speeds, encompassing most microwave switching applications. The output HIGH level of SWD-119 is optionally 0 to +2.0V (relative to GND) to optimize the intermodulation products of the control devices at low frequencies.
Parametrics
SWD-119 absolute maximum ratings: (1)Positive DC Supply Voltage: 4.5 V min, 5.0 V typ and 5.5 V max; (2)Negative DC Supply Voltage: -8.5 V min, -5.0 V typ and -4.5 V max; (3)Optional DC Output Supply Voltage: 0 V min, 1.0 V typ and 2.0 V max; (4)Negative Supply Voltage Range: 4.5 V min, 6.5 V typ, 8.5 V max; (5)Positive to negative Supply Range: 9.0 V min, 10.0 V typ and 14.0 V max; (6)Operating Ambient temperature: -40 to +85 ℃; (7)DC Output Current - High: -1.0 mA; (8)DC Output Current - Low: 1.0 mA; (9)Maximum Input Rise or Fall Time: 500 nS.
Features
SWD-119 features: (1)High Speed CMOS Technology; (2)Quad Channel; (3)Positive Voltage Control; (4)Low Power Dissipation; (5)Low Cost Plastic SOIC-16 Package.

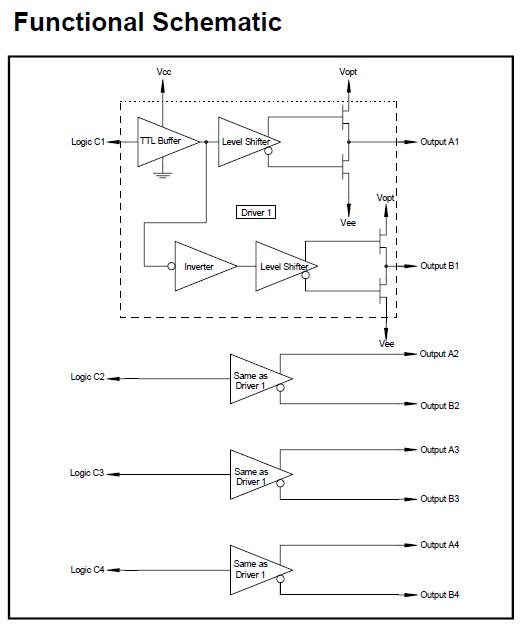

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SWD-119 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
