Product Summary

The XH connector SXH-001T-P0.6 was developed based on the high reliability and versatility of our NH series connectors. The SXH-001T-P0.6 is very small with a mounting height of 9.8mm.

Parametrics

SXH-001T-P0.6 absolute maximum ratings: (1)Current rating: 3A AC, DC (AWG #22); (2)Voltage rating: 250V AC, DC; (3)Temperature range: -25℃ to +85℃; (4)Contact resistance: Initial value/10m Ω max.; (5)Insulation resistance: 1,000M Ω min.; (6)Withstanding voltage: 1,000V AC/minute; (7)Applicable wire: AWG #30 to #22; (8)Applicable PC board thickness: 1.6mm.

Features

SXH-001T-P0.6 features: (1)Original folded beam contact; (2)Box-shaped shrouded header; (3)Header with a boss; (4)Interchangeability; (5)Conforming to the HA terminal.

Diagrams

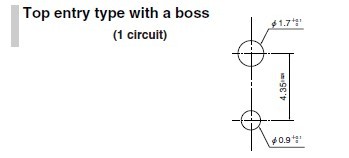

SXH-001T-P0.6 package dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SXH-001T-P0.6
SXH-001T-P0.6

JST Sales America Inc (VA)

CONN TERM CRIMP XH 22-28AWG

Data Sheet

1-100: $0.02
100-500: $0.01
500-1000: $0.01
