Product Summary
The TPS3803-01DCKR supervisory circuit provides circuit initialization and timing supervision, primarily for DSPs and processorbased systems. The TPS3803-01DCKR has an adjustable SENSE input that can be configured by two external resistors. In addition to the fixed sense threshold monitored at VDD, it provides a second adjustable SENSE input. RESET is asserted in case any of the two voltages drops below VIT. The applications of the TPS3803-01DCKR include Applications Using DSPs, Microcontrollers, or Microprocessors, Wireless Communication Systems, Portable/Battery-Powered Equipment, Programmable Controls, Intelligent Instruments, Industrial Equipment, Notebook/Desktop Computers, Automotive Systems.
Parametrics
TPS3803-01DCKR absolute maximum ratings: (1)Supply voltage, VDD: 7 V; (2)All other pins: –0.3 V to 7 V; (3)Maximum low-output current, IOL: 5 mA; (4)Maximum high-output current, IOH: –5 mA; (5)Input clamp current, IIK (VI<0 or VI>VDD): ±10 mA; (6)Output clamp current, IOK (VO<0 or VO>VDD): ±10 mA; (7)Operating free-air temperature range, TA: –40℃ to 85℃; (8)Storage temperature range, Tstg: –65℃ to 150℃; (9)Soldering temperature: 260℃.
Features
TPS3803-01DCKR features: (1)Single Voltage Detector (TPS3803): Adjustable/1.5 V; (2)Dual Voltage Detector (TPS3805): Adjustable/3.3 V; (3)High ±1.5% Threshold Voltage Accuracy; (4)Supply Current: 3 μA Typical at VDD = 3.3 V; (5)Push/Pull Reset Output (TPS3805), Open-Drain Reset Output (TPS3803); (6)Temperature Range: –40℃ to 85℃; (7)Five-Pin SC–70 Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

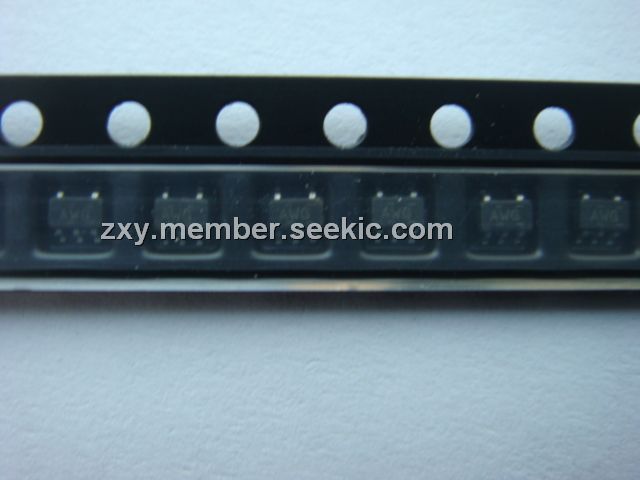

 TPS3803-01DCKR |
Texas Instruments |
Voltage Detectors / Monitors Adj 1.5V V Detector |
Data Sheet |
|
|
||||||||||||
|
TPS3803-01DCKRG4 |
Texas Instruments |
Voltage Detectors / Monitors Single Voltage Detector |
Data Sheet |
|
|
||||||||||||
