Product Summary

The TPS71730DCKR is a Low Noise, High-Bandwidth PSRR Low-Dropout 150mA Linear Regulator. The TPS71730DCKR offers very high power supply rejection (PSRR) while maintaining very low 50mA ground current in an ultra-small, five-pin SC70 package. The family uses an advanced BiCMOS process and a PMOSFET pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS71730DCKR is stable with a 1.0mF ceramic output capacitor, and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The applications of the TPS71730DCKR include Mobile Phone Handsets, Wireless LAN, Bluetooth, PDAs and Smartphones.

Parametrics

TPS71730DCKR absolute maximum ratings: (1)Input voltage range, VIN: –0.3 to +7.0 V; (2)Feedback input voltage range, VFB , VNR: –0.3 to +3.6 V; (3)Enable voltage range, VEN:–0.3 to VIN + 0.3V(2) V; (4)Output voltage range, VOUT: –0.3 to +7.0 V; (5)Maximum output current, IOUT: Internally limited; (6)Junction temperature range, TJ:–55 to +150℃; (7)Storage junction temperature range , TSTG:–55 to +150℃; (8)ESD rating, HBM: 2kV; (9)ESD rating, CDM: 500V.

Features

TPS71730DCKR features: (1)150mA Low-Dropout Regulator with Enable; (2)Low IQ: 50μA (typical); (3)Available in Multiple Output Versions; (4)Ultra-High PSRR; (5)Low Noise: 30mV typical (100Hz to 100kHz); (6)Stable with a 1.0μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)3% Overall Accuracy (over Load/Line/Temp); (9)Over-Current and Over-Temperature Protection; (10)Very Low Dropout: 170mV Typical at 150mA; (11)Small SC70-5, 2mm x 2mm SON-6, and 1.5mm×1.5mm SON-6 (Q1 2007) Packages.

Diagrams

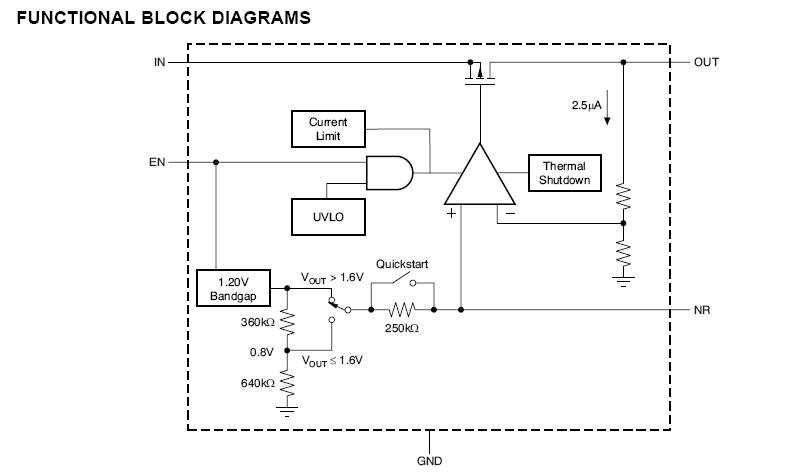

TPS71730DCKR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

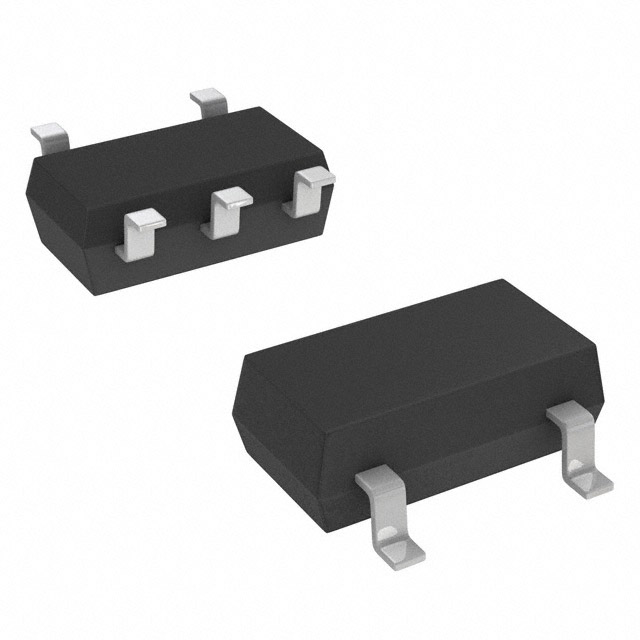

TPS71730DCKR
TPS71730DCKR
Texas Instruments
Low Dropout (LDO) Regulators Single Output LDO 150mA Fixed(3.0V)
Data Sheet
0-1: $0.78
1-25: $0.62
25-100: $0.54
100-250: $0.48
TPS71730DCKRG4
TPS71730DCKRG4
Texas Instruments
Low Dropout (LDO) Regulators Sgl Output LDO 150 mA Fixed(3.0V)
Data Sheet
0-1870: $0.31
1870-3000: $0.29
3000-6000: $0.28
6000-12000: $0.27
