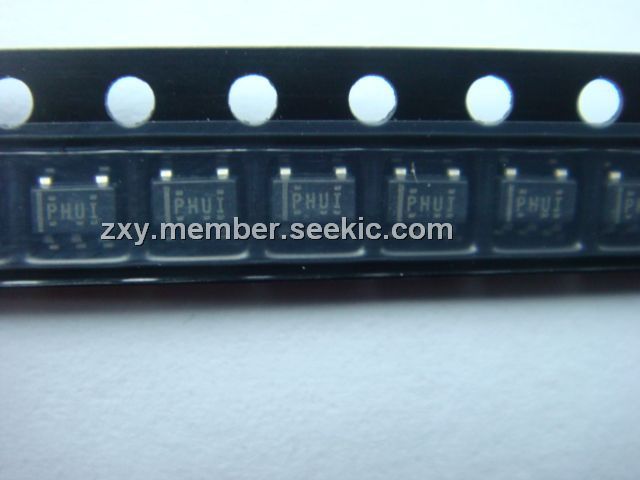

Product Summary

The TPS73033DBVR low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses a small SOT23 package. TPS73033DBVR is stable, with a small 2.2-μF ceramic capacitor on the output. The TPS73033DBVR uses an advanced, proprietary BiCMOS fabrication process to yield low dropout voltages (e.g., 120 mV at 200 mA). TPS73033DBVR achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming low quiescent current (170 μA typical). Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low-noise features as well as the fast response time.

Parametrics

TPS73033DBVR absolute maixmum ratings: (1)VIN range: -0.3 V to 6 V; (2)VEN range: -0.3 V to VIN + 0.3 V; (3)VOUT range: -0.3 V to 6 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)ESD rating, CDM: 500 V; (7)Continuous total power dissipation: See Dissipation Ratings Table; (8)Junction temperature range: -40℃ to 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TPS73033DBVR features: (1)200 mA RF Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 3-V, 3.3-V, and Adjustable (1.22-V to 5.5-V); (3)High PSRR (68dB at 1 kHz); (4)Ultralow-Noise (23 μVRMS, TPS73018); (5)Fast Start-Up Time (50 μs); (6)Stable With a 2.2-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (120 mV at Full Load); (9)5- and 6-Pin SOT23 (DBV) Package.

Diagrams

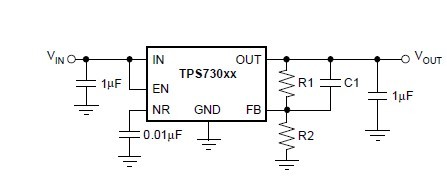

TPS73033DBVR APPLICATION INFORMATION

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TPS73033DBVR
TPS73033DBVR
Texas Instruments
Low Dropout (LDO) Regulators High PSRR RF 200-mA
Data Sheet
0-1: $0.32
1-25: $0.25
25-100: $0.22
100-250: $0.19
TPS73033DBVRG4
TPS73033DBVRG4
Texas Instruments
Low Dropout (LDO) Regulators High PSRR RF 200-mA
Data Sheet
0-2400: $0.13
2400-3000: $0.13
