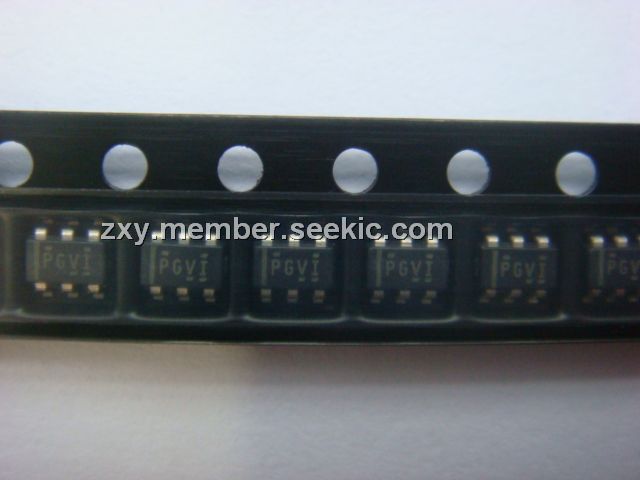

Product Summary

The TPS79301DBVR low-dropout (LDO) low-power linear voltage regulator features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up, and excellent line and load transient responses in NanoStar wafer chip scale and SOT23 packages. NanoStar packaging gives an ultrasmall footprint as well as an ultralow profile and package weight, making it ideal for portable applications such as handsets and PDAs. Each device in the family is stable, with a small 2.2-μF ceramic capacitor on the output. The TPS79301DBVR uses an advanced. proprietary BiCMOS fabrication process to yield extremely low dropout voltages (e.g., 112 mV at 200 mA, TPS79330). Each device achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (170 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA. The TPS79301DBVR exhibits approximately 32 μVRMS of output voltage noise at 2.8-V output with a 0.1-μF bypass capacitor. Applications with analog components that are noise-sensitive, such as portable RF electronics, benefit from the high PSRR and low-noise features as well as the fast response time.

Parametrics

TPS79301DBVR absolute maximum ratings: (1)VIN range -0.3 V to 6 V; (2)VEN range -0.3 V to VIN + 0.3 V; (3)VOUT range -0.3 V to 6 V; (4)Peak output current Internally limited; (5)ESD rating, HBM 2 kV; (6)ESD rating, CDM 500 V; (7)Continuous total power dissipation See Dissipation Ratings Table; (8)Junction temperature range, DBV package -40℃ to 150℃; (9)Junction temperature range, YEQ package -40℃ to 125℃; (10)Storage temperature range, Tstg -65℃ to 150℃.

Features

TPS79301DBVR features: (1)200-mA RF Low-Dropout Regulator With Enable; (2)Available in 1.8-V, 2.5-V, 2.8-V, 2.85-V, 3-V, 3.3-V, 4.75-V, and Adjustable (1.22-V to 5.5-V); (3)High PSRR (70 dB at 10 kHz); (4)Ultralow-Noise (32 μVRMS, TPS79328); (5)Fast Start-Up Time (50 μs); (6)Stable With a 2.2-μF Ceramic Capacitor; (7)Excellent Load/Line Transient Response; (8)Very Low Dropout Voltage (112 mV at Full exLoad, TPS79330); (9)5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YEQ) Packages.

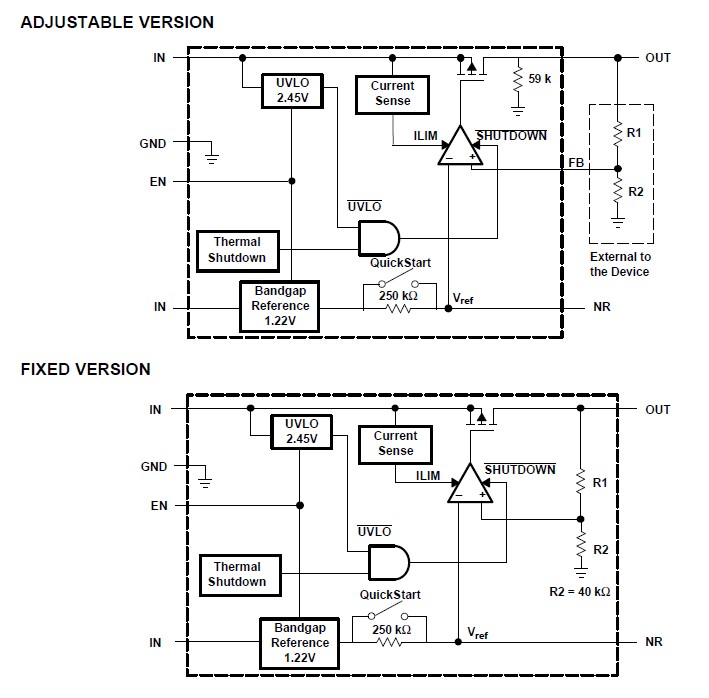

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS79301DBVR
TPS79301DBVR

Texas Instruments

Low Dropout (LDO) Regulators 200mA Adj Hi PSRR

Data Sheet

0-1: $0.47
1-25: $0.37
25-100: $0.33
100-250: $0.28
TPS79301DBVREP
TPS79301DBVREP

Texas Instruments

Low Dropout (LDO) Regulators Mil Enh Ultra Lo Noise Hi PSRR 200mA

Data Sheet

0-1900: $0.26
1900-3000: $0.24
3000-6000: $0.23
6000-12000: $0.22
TPS79301DBVRG4
TPS79301DBVRG4

Texas Instruments

Low Dropout (LDO) Regulators High PSRR Fast RF High-Enable 200mA

Data Sheet

0-1: $0.45
1-25: $0.35
25-100: $0.31
100-250: $0.27
TPS79301DBVRG4Q1
TPS79301DBVRG4Q1

Texas Instruments

Low Dropout (LDO) Regulators Sgl Output LDO 200mA Adj. 1.2 to 5.5V

Data Sheet

0-2050: $0.22
2050-3000: $0.20
3000-6000: $0.19
6000-12000: $0.18
TPS79301DBVRQ1
TPS79301DBVRQ1

Texas Instruments

Low Dropout (LDO) Regulators AutoCat Lo HiPSRRF RF200mA

Data Sheet

0-1: $0.50
1-25: $0.40
25-100: $0.36
100-250: $0.34
