Product Summary

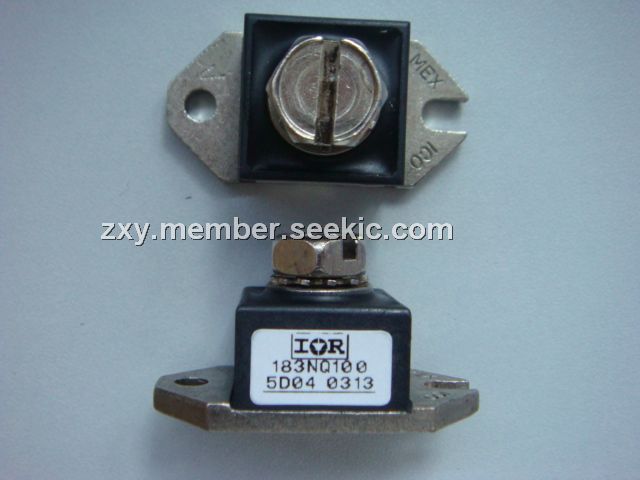

The 183NQ100 is a kind of high current Schottky rectifier module, which has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 ℃ junction temperature. Typical applications of the 183NQ100 are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
Parametrics
183NQ100 absolute maximum ratings: (1)IF(AV), Rectangular waveform: 180 A; (2)VRRM: 100 V; (3)IFSM, tp = 5 μs sine: 22000 A; (4)VF, 180 Apk, TJ = 125℃: 0.73 V; (5)TJ Range: - 55 to 175℃.
Features
183NQ100 features: (1)175℃ TJ operation; (2)Low forward voltage drop; (3)High frequency operation; (4)Guard ring for enhanced ruggedness and long term reliability; (5)Lead (Pb)-free; (6)Designed and qualified for industrial level.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 183NQ100 |
|
DIODE SCHOTTKY 100V 180A HALFPAK |
Data Sheet |
Negotiable |
|
||||
|
183NQ100PbF |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
183NQ100R |
Vishay |
Schottky (Diodes & Rectifiers) 180 Amp 100 Volt 22000 Amp IFSM |
Data Sheet |
Negotiable |
|
||||
