Product Summary
The 2DI30D-050A is a power transistor module. Its applications include high power switching, AC motor controls, DC motor controls and uninterruptible power supply.
Parametrics
2DI30D-050A absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VEBO:7V; (4)IC: 30A; (5)ICP: 60A; (6)-IC: 30A; (7)IB: 1.8A; (8)IBP: 3.6A; (9)PC, one transistor: 250W; (10)PC, two transistors: 500W; (11)Tj: +150℃; (12)m: 175g; (13)Viso: 2500V; (14)mounting: 35Nm; (15)Terminals: 35Nm; (16)Tstg: -40 to +125℃.
Features
2DI30D-050A features: (1)high DC current gain; (2)including free wheeling diode; (3)insulated type.

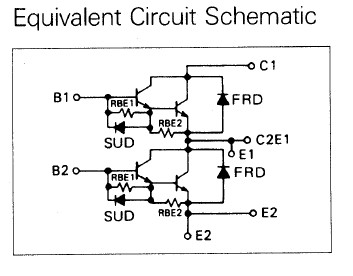

Diagrams
