Product Summary
The 2SB880 is a PNP/NPN Epitaxial Planar Silicon Darlington Tranasistor. The applications of the 2SB880 include Motor drivers, printer hammer drivers, relay drivers, voltage regulators.
Parametrics
2SB880 absolute maximum ratings: (1)Collector-to-Base Voltage VCBO: 70V; (2)Collector-to-Emitter Voltage VCEO: 60V; (3)Emitter-to-Base Voltage VEBO: 6V; (4)Collector Current IC: 4A; (5)Collector Current (Pulse) ICP: 6A; (6)Collector Dissipation PC: 1.75 W; (7)Collector Dissipation PC at TC=25℃: 30W; (8)Junction Temperature Tj: 150℃; (9)Storage Temperature Tstg –55℃ to +150℃.
Features
2SB880 features: (1) High DC current gain; (2) Large current capacity and wide ASO; (3) Low saturation voltage.

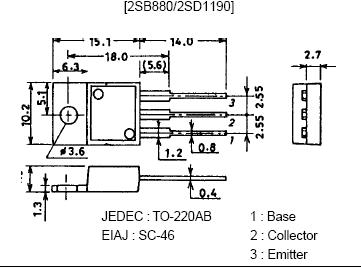

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

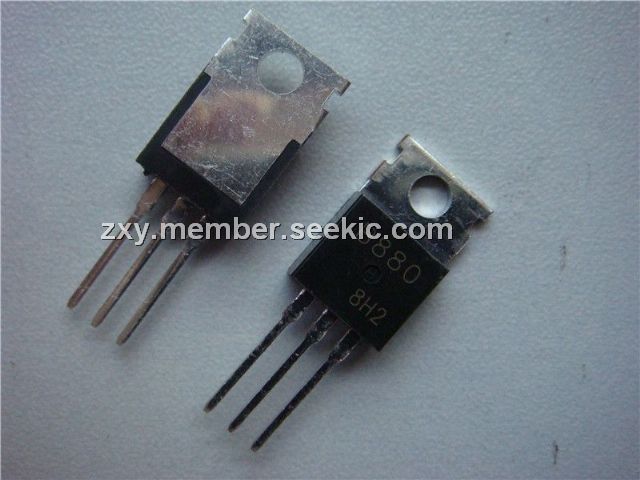

 2SB880 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
