Product Summary
The 74FCT162240CTPACT is a 16-bit buffer/line driver. It is used in memory driver, clock driver, or other bus interface applications, where high speed and low power are required. With flow-through pinout and small shrink packaging, board layout is simplified. The three-state controls are designed to allow 4-, 8-, or 16-bit operation.
Parametrics
74FCT162240CTPACT absolute maxing ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Ambient Temperature with Power Applied: -55℃ to +125℃; (3)DC Input Voltage: -0.5V to +7.0V; (4)DC Output Voltage: -0.5V to +7.0V; (5)DC Output Current(Maximum Sink Current/Pin): -60 to +120 mA; (6)Power Dissipation: 1.0W; (7)Static Discharge Voltage(per MIL-STD-883, Method 3015): >2001V.
Features
74FCT162240CTPACT features: (1)Ioff supports partial-power-down mode operation; (2)Edge-rate control circuitry for significantly improved noise characteristics; (3)Typical output skew < 250 ps; (4)ESD > 2000V; (5)TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages; (6)Industrial temperature range of -40℃ to +85℃; (7)VCC = 5V ± 10%.

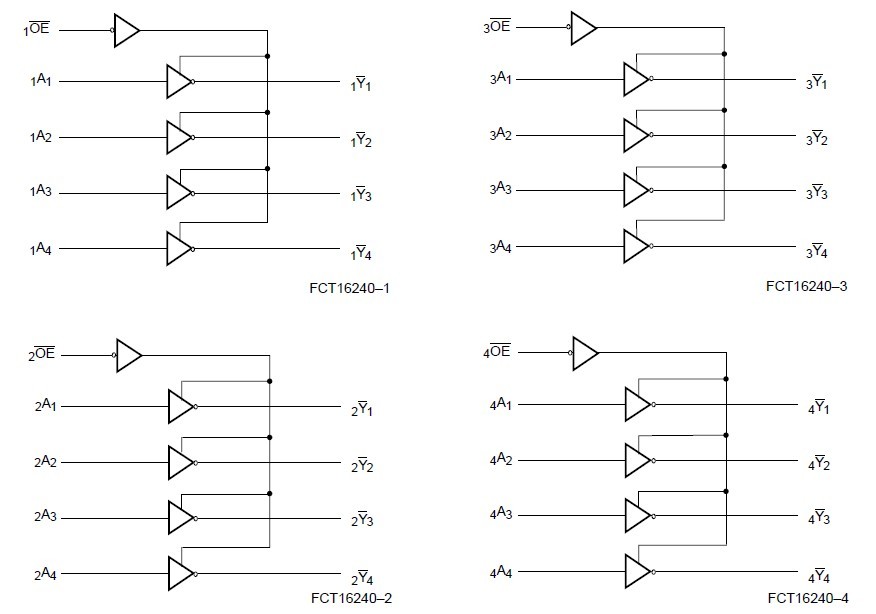

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74FCT162240CTPACT |
Texas Instruments |
Buffers & Line Drivers 16B Buffers/Drivers |
Data Sheet |
|
|
||||||||||||
