Product Summary

The AC101-TF is a highly integrated, 3.3V, low power, 10Base-T/100Base-TX/FX, Ethernet transceiver implemented in 0.35mm CMOS technology. Multiple modes of operation, including normal operation, test mode and power saving mode, are available through either hardware or software control.

Parametrics

AC101-TF absolute maxing ratings: (1)Storage Temperature: -55℃ to +150℃; (2)Vcc Supply Referenced to GND: -0.5V to +5.0V; (3)Digital Input Voltage: -0.5V to Vcc; (4)DC Output Voltage: -0.5V to Vcc.

Features

AC101-TF features: (1)Baseline Wander Compensation; (2)Multi-Function LED outputs; (3)Legacy 10Base-T 7 wire interface; (4)100M Symbol Mode / 10M Symbol Mode; (5)Cable length indicator; (6)Reverse polarity detection and correction with Register Bit indication – Automatic or Forced; (7)8 programmable interrupts; (8)Diagnostic registers.

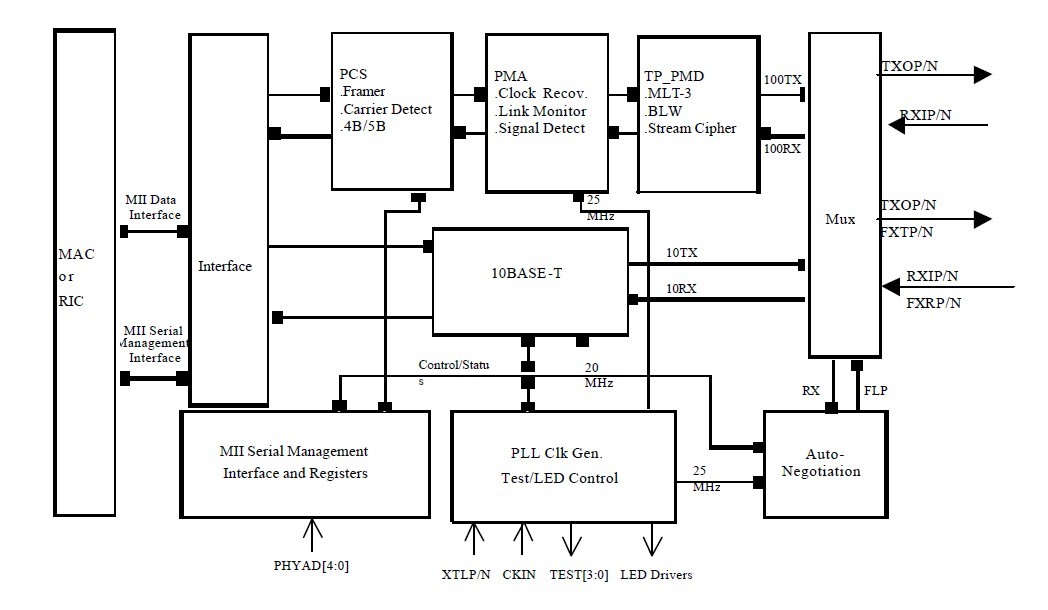

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

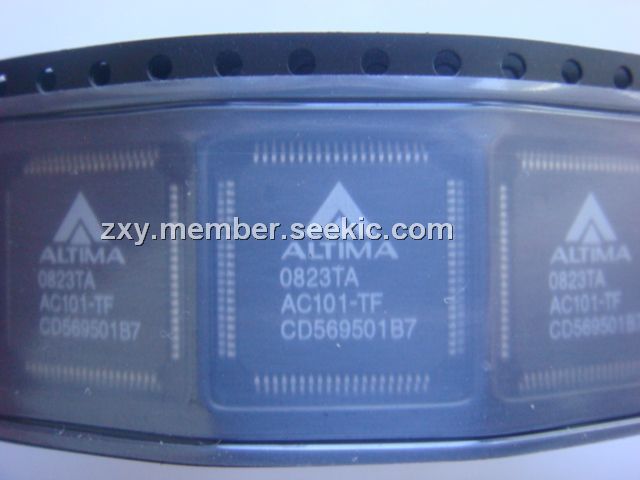

AC101-TF
AC101-TF
Other

Data Sheet
Negotiable
