Product Summary

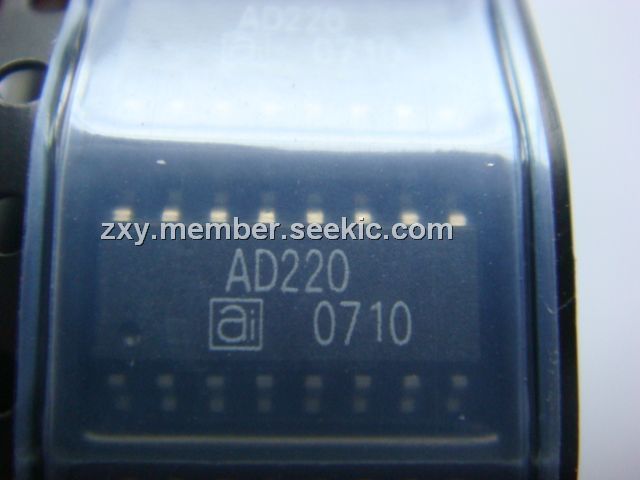

The AD220 is an IC FET digital attenuator consisting of four monolithic attenuators with LSB of 2 dB and a total attenuation of 30 dB with all attenuators connected. The AD220 is particularly well suited where high attenuation accuracy, low insertion loss and low intermodulation products are required.Typical applications include cellular, radio, wireless data, wireless local loop and other gain level control circuits.
Parametrics
AD220 absolute maximum ratings: (1)RF Input Power: 2 W > 500 MHz 0/-8 V, 0.5 W @ 50 MHz 0/-8 V; (2)Control Voltage: +0.2 V, -8 V; (3)Operating Temperature: -40℃ to 85℃; (4)Storage Temperature: -65℃ to 150℃.
Features
AD220 features: (1)Attenuation in 2 dB Steps to 30 dB with High Accuracy; (2)Low Cost SOIC-16 Plastic Package; (3)Low DC Power Consumption.

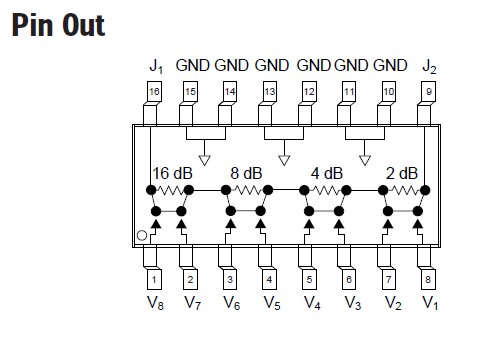

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD220-00 |
NVE Corp/Sensor Products |
SENSOR MAG SW 28G STANDRD 8TSSOP |
Data Sheet |
|
|
||||||||||||||||
 |
AD22001 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |
