AD7304BRU-REEL7

Product Summary

The AD7304BRU-REEL7 is a quad, 8-bit DAC that operate from a single +3 V to +5 V supply or ±5 V supplies. The AD7304BRU-REEL7 has a serial interface, while the AD7305 has a parallel interface. Internal precision buffers swing rail-to-rail. The reference input range of the AD7304BRU-REEL7 includes both supply rails allowing for positive or negative fullscale output voltages. Operation is guaranteed over the supply voltage range of +2.7 V to +5.5 V, consuming less than 9 mW from a +3 V supply. The full-scale voltage output of the AD7304BRU-REEL7 is determined by the external reference input voltage applied. The rail-to-rail VREF input to DAC VOUT allows for a full-scale voltage set equal the positive supply VDD, the negative supply VSS or any value in between. The AD7304BRU-REEL7 doubled-buffered serial-data interface offers high speed, three-wire, SPI and microcontroller compatible inputs using data in (SDI), clock (CLK) and chip select (CS) pins. Additionally, an internal power-on reset sets the output to zero scale.

Parametrics

AD7304BRU-REEL7 absolute maximum ratings: (1)VDD to GND: –0.3 V, +8 V; (2)VSS to GND: +0.3 V, –8 V; (3)VREFX to GND: VSS, VDD; (4)Logic Inputs to GND: –0.3 V, VDD + 0.3 V; (5)VOUTX to GND: –0.3 V, VDD + 0.3 V; (6)IOUT Short Circuit to GND: 50 mA; (7)Package Power Dissipation: (TJ MAX–TA)/θJA; (8)Thermal Resistance θJA. 16-Lead Plastic DIP Package (N-16): 103℃/W; (9)16-Lead SOIC Package (R-16): 73℃/W; (10)TSSOP-16 Package (RU-16): 180℃/W; (11)20-Lead Plastic DIP Package (N-20): 120℃/W; (12)20-Lead SOIC Package (R-20): 74℃/W; (13)TSSOP-20 Package (RU-20): 155℃/W; (14)Maximum Junction Temperature (TJ MAX): +150℃; (15)Operating Temperature Range: –40℃ to +85℃; (16)Storage Temperature Range: –65℃ to +150℃.

Features

AD7304BRU-REEL7 features: (1)Four 8-Bit DACs in One Package; (2)+3 V, +5 V and ±5 V Operation; (3)Rail-to-Rail REF-Input to Voltage Output Swing; (4)2.6 MHz Reference Multiplying Bandwidth; (5)Compact 1.1 mm Height TSSOP 16-/20-Lead Package; (6)Internal Power ON Reset; (7)SPI Serial Interface Compatible—AD7304; (8)Fast Parallel Interface—AD7305; (9)40 μA Power Shutdown.

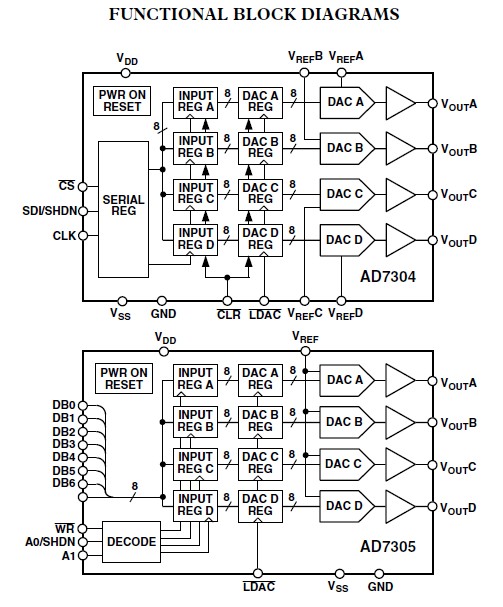

Diagrams
