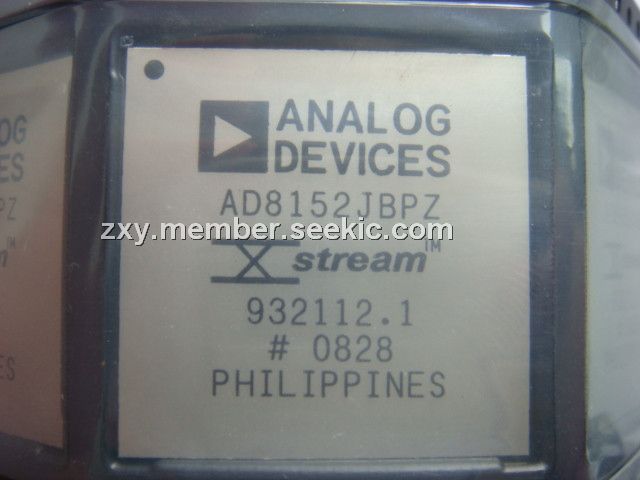

AD8152JBPZ

34 x 34, 3.2 Gbps Asynchronous Digital Crosspoint Switch, 3.7V, 9.33W, BGA, AD8152JBPZ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $25.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $25.00~30.00

PartNumber:: AD8152JBPZ

Brand:: Analog Devices - ADI | Pack: BGA | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-03

From Other Seller

Part Number:AD8152JBPZ
US $25.00 - 30.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD8152JBPZ is a member of the Xstream line of products. The AD8152JBPZ is a breakthrough in digital switching, offering a large switch array (34 × 34) on very little power, typically 2.0 W. Additionally, The AD8152JBPZ operates at data rates up to 3.2 Gbps per port, making it suitable for Sonet/SDH OC-48 with Forward Error Correction (FEC).The applications of the AD8152JBPZ are Fiber Optic Network Switching, High Speed Serial Backplane Routing to OC-48 with FEC, Gigabit Ethernet, Digital Video (HDTV), Data Storage Networks.

Parametrics

AD8152JBPZ absolute maximum ratings:(1)VCC to VEE: 3.7V; (2)VTTI :VCC + 0.6V; (3)VTTO:VCC + 0.6V; (4)Internal Power Dissipation2:8.33 W; (5)Input Voltage: VCC + 0.6V; (6)Differential Input Voltage:1.7V; (7)Logic Input Voltage: VEE – 0.3V＜VIN＜VCC + 0.6V; (8)Storage Temperature Range:–65℃ to +125℃; (9)Lead Temperature Range:300℃.

Features

AD8152JBPZ features: (1)Low Cost; (2)Low Power; (3)2.0 W @ 2.5 V (Outputs Enabled); (4)＜100 mW @ 2.5 V (Outputs Disabled); (5)34 ×34, Fully Differential, Non-blocking Array; (6)3.2 Gbps per Port NRZ Data Rate; (7)Wide Power Supply Range: 2.5 V to 3.3 V; (8)LVTTL or LVCMOS Level Control Inputs: @ 2.5 V to 3.3 V; (9)Low Jitter: 45 ps; (10)Drives a Backplane Directly; (11)Programmable Output Swing; (12)100 mV to 1.6 V Differential; (13)50Ω On-Chip I/O Termination; (14)User Controlled Voltage at the Load; (15)Minimizes Power Dissipation; (16)Dual Rank Latches; (17)Available in 256-Ball Grid Array.
