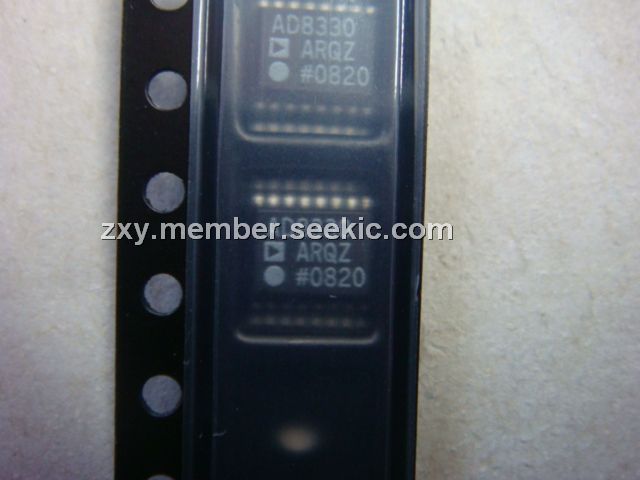

Product Summary

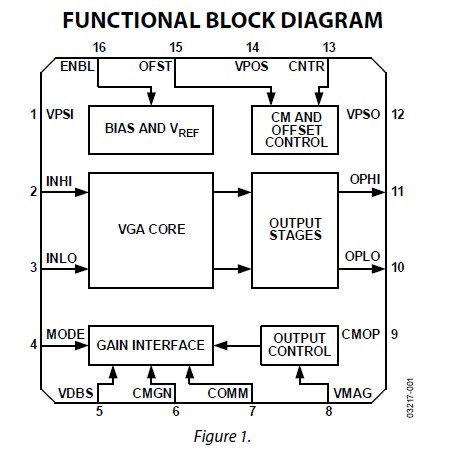

The AD8330ARQZ-REEL7 is a wideband variable gain amplifier for applications requiring a fully differential signal path, low noise, well-defined gain, and moderately low distortion, from dc to 150 MHz. The input pins can also be driven from a single-ended source. The peak differential input is ±2 V, allowing sine wave operation at 1 V rms with generous headroom. The output pins can drive single-sided loads essentially rail-to-rail. The differential output resistance is 150 Ω. The output swing of AD8330ARQZ-REEL7 is a linear function of the voltage applied to the VMAG pin that internally defaults to 0.5 V, providing a peak output of ±2 V. This can be raised to 10 V p-p, limited by the supply voltage. The typical aplications of AD8330ARQZ-REEL7 include: (1)Pre-ADC signal conditioning; (2)75 Ω cable driving adjust; (3)AGC amplifiers.

Parametrics

AD8330ARQZ-REEL7 absolute maximum ratings: (1)Supply Voltage: 6 V; (2)Power Dissipation: 0.62 W; (3)Input Voltage at Any Pin: VS + 200 mV; (4)Storage Temperature Range: -65℃ to +150℃; (5)θJA: 105.4℃/W; (6)θJC: 39℃/W; (7)Operating Temperature Range: -40℃ to +85℃; (8)Lead Temperature (Soldering 60 sec): 300℃.

Features

AD8330ARQZ-REEL7 features: (1)Fully differential signal path, also used with single-sided signals; (2)Inputs from 0.3 mV to 1 V rms, rail-to-rail outputs; (3)Differential RIN = 1 kΩ; ROUT (each output) 75 Ω; (4)Automatic offset compensation (optional); (5)Linear-in-dB and linear-in-magnitude gain modes: 0 dB to 50 dB, for 0 V < VDBS < 1.5 V (30 mV/dB); (6)Inverted gain mode: 50 dB to 0 dB at .30 mV/dB; (7)×0.03 to ×10 nominal gain for 15 mV < VMAG < 5 V; (8)Constant bandwidth: 150 MHz at all gains; (9)Low noise: 5 nV/√Hz typical at maximum gain; (10)Low distortion: ≤.62 dBc typical; (11)Low power: 20 mA typical at VS of 2.7 V to 6 V; (12)Available in a space-saving, 3 mm × 3 mm LFCSP package.
