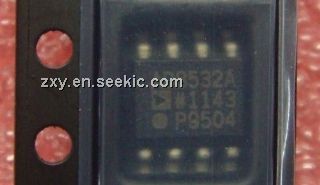

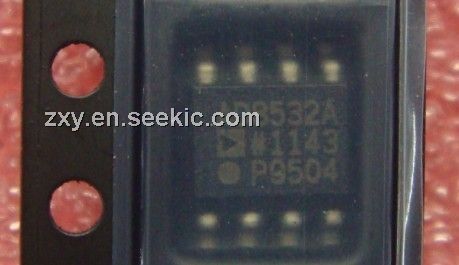

Product Summary

The AD8532ARMZ-REEL is a single, dual, and quad rail-to-rail input/output single-supply amplifier featuring 250 mA output drive current. This high output current makes the AD8532ARMZ-REEL excellent for driving either resistive or capacitive loads. AC performance is very good with 3 MHz bandwidth, 5 V/μs slew rate, and low distortion. All are guaranteed to operate from a 3 V single supply as well as a 5 V supply. The applications of the AD8532ARMZ-REEL include Multimedia audio, LCD drivers, ASIC input or output amplifiers, Headphone drivers.

Parametrics

AD8532ARMZ-REEL absolute maximum ratings: (1)Supply Voltage (VS): 7 V; (2)Input Voltage : GND to VS; (3)Differential Input Voltage1: ±6 V; (4)Storage Temperature Range: -65 to +150℃; (5)Operating Temperature Range: -40 to +85℃; (6)Junction Temperature Range: -65 to +150℃; (7)Lead Temperature (Soldering, 60 sec): 300℃.

Features

AD8532ARMZ-REEL features: (1)Single-supply operation: 2.7 V to 6 V; (2)High output current: ±250 mA; (3)Low supply current: 750 μA/amplifier; (4)Wide bandwidth: 3 MHz; (5)Slew rate: 5 V/μs; (6)No phase reversal; (7)Low input currents; (8)Unity gain stable; (9)Rail-to-rail input and output.

Diagrams

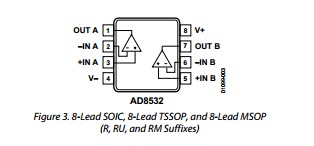

AD8532ARMZ-REEL Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8532ARMZ-REEL
AD8532ARMZ-REEL

IC OPAMP GP R-R CMOS 3MHZ 8MSOP
Data Sheet
0-1: $0.84
1-10: $0.74
10-25: $0.67
25-100: $0.59
100-250: $0.51
250-500: $0.46
500-1000: $0.36
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8500
AD8500
Other

Data Sheet
Negotiable
AD8500AKSZ-R2
AD8500AKSZ-R2

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-250: $1.02
AD8500AKSZ-REEL
AD8500AKSZ-REEL

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-10000: $0.51
AD8500AKSZ-REEL7
AD8500AKSZ-REEL7

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-1: $1.22
1-10: $1.10
10-25: $0.99
25-100: $0.89
100-250: $0.79
250-500: $0.69
500-1000: $0.57
AD8502
AD8502
Other

Data Sheet
Negotiable
AD8502ARJZ-R2
AD8502ARJZ-R2

IC OPAMP GP CMOS 7KHZ SOT23-8
Data Sheet
0-250: $1.02
