Product Summary

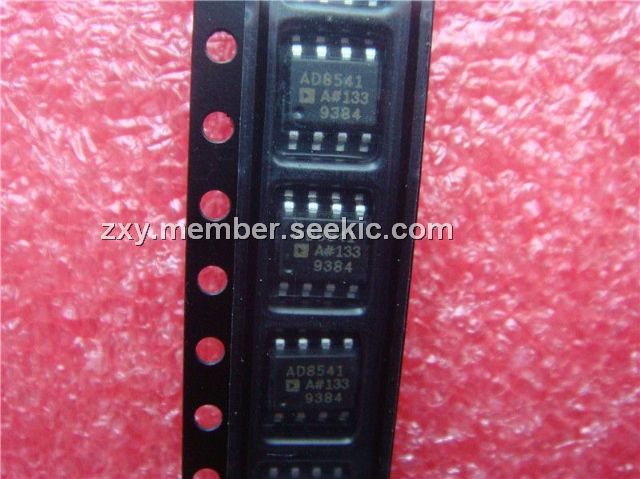

The AD8541ARZ-REEL7 is a kind of single rail-to-rail input and output, single-supply amplifier featuring very low supply current and 1 MHz bandwidth. It is guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. The AD8541ARZ-REEL7 provides 1 MHz bandwidth at a low current consumption of 45 μA per amplifier. The AD8541ARZ-REEL7 is widely used in ASIC input or output amplifiers,Sensor interfaces, Piezoelectric transducer amplifiers, Medical instrumentation, Mobile communications, Audio outputs and Portable systems.

Parametrics

AD8541ARZ-REEL7 absolute maximum ratings: (1)Supply Voltage (VS): 6 V; (2)Input Voltage: GND to VS; (3)Differential Input Voltage1: ±6 V; (4)Storage Temperature Range: -65℃ to +150℃; (5)Operating Temperature Range: -40℃ to +125℃; (6)Junction Temperature Range: -65℃ to +150℃; (7)Lead Temperature (Soldering, 60 sec): 300℃.

Features

AD8541ARZ-REEL7 features: (1)Single-supply operation: 2.7 V to 5.5 V; (2)Low supply current: 45 μA/amplifier; (3)Wide bandwidth: 1 MHz; (4)No phase reversal; (5)Low input currents: 4 pA; (6)Unity gain stable; (7)Rail-to-rail input and output; (8)Qualified for automotive applications.

Diagrams

AD8541ARZ-REEL7 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8541ARZ-REEL7
AD8541ARZ-REEL7

IC OPAMP GP R-R CMOS 1MHZ 8SOIC
Data Sheet
0-1000: $0.22
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8500
AD8500
Other

Data Sheet
Negotiable
AD8500AKSZ-R2
AD8500AKSZ-R2

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-250: $1.02
AD8500AKSZ-REEL
AD8500AKSZ-REEL

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-10000: $0.51
AD8500AKSZ-REEL7
AD8500AKSZ-REEL7

IC OPAMP GP R-R CMOS 7KHZ SC70-5
Data Sheet
0-1: $1.22
1-10: $1.10
10-25: $0.99
25-100: $0.89
100-250: $0.79
250-500: $0.69
500-1000: $0.57
AD8502
AD8502
Other

Data Sheet
Negotiable
AD8502ARJZ-R2
AD8502ARJZ-R2

IC OPAMP GP CMOS 7KHZ SOT23-8
Data Sheet
0-250: $1.02
