Product Summary

The AD8542ARM AVA is a dual rail-to-rail input and output, single-supply amplifier. It is guaranteed to operate from a 2.7 V single supply as well as a 5 V supply. The applicaitons of the AD8542ARM AVA include ASIC input or output amplifiers, Sensor interfaces, Piezoelectric transducer amplifiers, Medical instrumentation, Mobile communications, Audio outputs and Portable systems.

Parametrics

AD8542ARM AVA absolute maximum ratings: (1)Supply Voltage(VS):6V ; (2)Input Voltage:GND to VS; (3)Differential Input Voltage1:±6 V ; (4)Storage Temperature Range:-65℃ to +150℃; (5)Operating Temperature Range:-40℃ to +125℃ ; (6)Junction Temperature Range:-65℃ to +150℃ ; (7)Lead Temperature (Soldering, 60 sec):300℃.

Features

AD8542ARM AVA features: (1)Single-supply operation: 2.7 V to 5.5 V ; (2)Low supply current: 45μA/amplifier ; (3)Wide bandwidth: 1MHz ; (4)No phase reversal ; (5)Low input currents: 4pA ; (6)Unity gain stable ; (7)Rail-to-rail input and output.

Diagrams

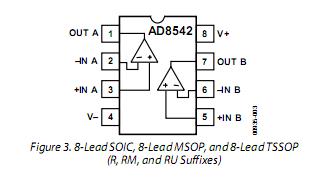

AD8542ARM AVA circuit diagram
